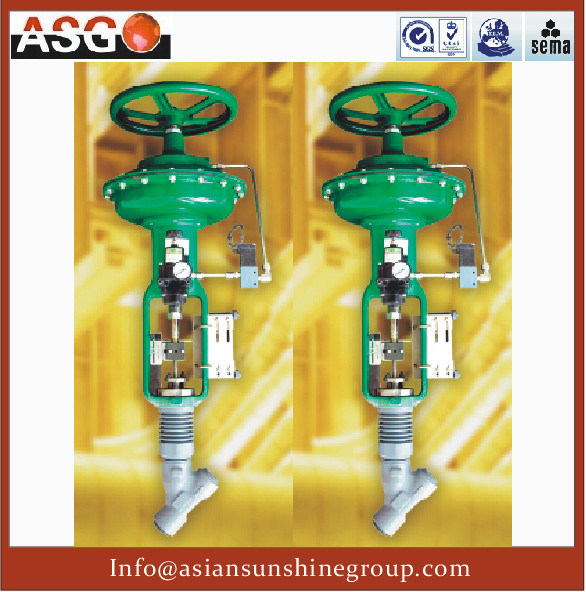

Pneumatic Y-patter Control Valve- Valve -ASG Fluid Control Equipment–ASIAN SUNSHINE GROUP

Pneumatic Y-patter Control Valve- Valve -ASG Fluid Control Equipment–ASIAN SUNSHINE GROUP
Pneumatic Y-patter Control Valve- Valve -ASG Fluid Control Equipment–ASIAN SUNSHINE GROUP Pneumatic Y-patter Control Valve- Valve -ASG Fluid Control Equipment–ASIAN SUNSHINE GROUP

Large Image :  Pneumatic Y-patter Control Valve- Valve -ASG Fluid Control Equipment–ASIAN SUNSHINE GROUP

Product Details:
Place of Origin: China
Brand Name: ASG
Model Number: Pneumatic Y-pattern Drain Valve
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: US $ 0 - 1,000 / Set
Packaging Details: case
Delivery Time: stock
Payment Terms: T/T,Western Union,Palpay
Supply Ability: 1000
Detailed Product Description

Pneumatic Y-pattern Drain Valve

Pneumatic control valve,pneumatic Y-type control valve, Y-type control valve,control valve

Pneumatic Y-pattern Drain Valve,Drain Valve,Y-pattern Drain Valve



Application

Pneumatic drain valves are installed in steam pipes of thermal power unit

According to their site can be divided into:

1.Main steam line drain valves

2.Hot reheat line drain valves

3.Cold reheat line drain valves

4.First stage,second stage,third stage,forth stage,fifth stage and sixth stage extraction steam line drain valves



Valve characters

1.Y-Type forged valve body,low flow resistance,greater Cv value.

2.Disc with throttle piece,effectively protect sealing surface,extend valve service life.

3.Disc & Seat sealing surface through special craft processing and machining,anti-cavitation,erosion-resistant

4.Processing two guide rings in disc,stem suffer force balanced,flexible movement.

5.Stem packing all of imported U.S.Garlock high-quality flexible graphite packing,good chemical properties and flexibility,low friction,long service life.

6.Fast switching-speed,normally 3-5 seconds,effective protection of system security,greatly reducing the time of the sealing surface erosion by media.

7.There are disperse heat disks in the bonnet,can fully heat dissipation which protects pneumatic actuator & accessories are not subjected to high temperature and failure.Chamber gasket is clip S.S. Wire high mesh flexible graphite with a better sealing and reliability than general type.



Performance Parameters

Valve body type:Y-pattern 45°Angle

Body material:A105,F22,F91,F92,F316

Bonnet:Basic type,Disperse heat type

Trim:Integral Type:Integral overlaying welding seat

     Internal parts can be replaced:Seat,Disc,Bonnet quick replacement,Maintenance performance

Packing:Flexible graphite clip stainless steel wire

Flow characteristic:Quick opening



Two kinds of actuator can be chosen:

Pneumatic diaphragm actuator (single-spring & multi-spring type actuator,top-mounted & side-mounted hand-wheel can be chosen)Cylinder piston actuator.

Pneumatic Y-patter Control Valve- Valve -ASG Fluid Control Equipment–ASIAN SUNSHINE GROUP 0

Pneumatic Y-patter Control Valve- Valve -ASG Fluid Control Equipment–ASIAN SUNSHINE GROUP 1
