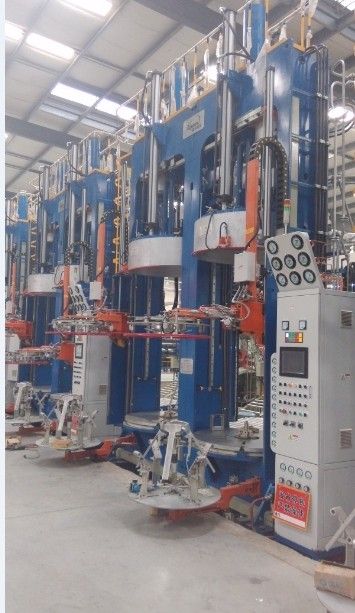

Rubber Tyre Vulcanizing Machine With PLC 21Mpa Hydraulic Pressure

Rubber Tyre Vulcanizing Machine With PLC 21Mpa Hydraulic Pressure
Rubber Tyre Vulcanizing Machine With PLC 21Mpa Hydraulic Pressure Rubber Tyre Vulcanizing Machine With PLC 21Mpa Hydraulic Pressure Rubber Tyre Vulcanizing Machine With PLC 21Mpa Hydraulic Pressure

Large Image :  Rubber Tyre Vulcanizing Machine With PLC 21Mpa Hydraulic Pressure

Product Details:
Place of Origin: CHAGNZHOU
Brand Name: ROSNM
Certification: ISO9001
Model Number: 48 model
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 60days
Payment Terms: T/T
Supply Ability: 30SET/2 MONTH
Detailed Product Description
High Light:

tire vulcanizing machine

,

tire vulcanizer machine





ISO9001 HIGH CLOSING FORCE OF TYRE VULANIZING MACHINE





Quick Detail:



Name

Tire Curing Press

Brand Name

ROSNM

Color

As your request

Feature

B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame

Warranty

1 year

Place of Origin

CHANGZHOU

control

PLC

Certificate

ISO9001







Description:



> Technical parameter:51〞hydraulic vulcanizer

> PRODUCT IDENTIFICATION NUMBER:LLY1330BBC4B

> Max Mould Closing Force:1850KN

> Hydraulic Pressure:21Mpa

> Dia. of Platen:Φ1300mm

> Bead Range:14"-20"

> Parameters of process medium

  • External-temperature steam pressure   1.2Mpa
  • Internal-temperature steam pressure   1.6Mpa
  • Nitrogen pressure                     2.4Mpa
  • Temperature precision of upper and lower hot plates            ±1℃
  • Temperature difference between upper hot plate and lower hot plate                                    ≤1℃
  • Temperature precision of steam house                        ±1℃
  • Temperature difference between left and right molds            ±1℃
  • Synchronism of air charging for left and right capsules (setting)   ±0.05s
  • Offset between hole center of installation mold of upper fixed plate and center of T-trough of lower hot plate should be≤2mm

> Maximum setting steam pressure:(Decided by user)

> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa

> Maximum external pressure of steam: 1.4MPa

> Maximum inner pressure of steam: 1.6MPa

> Main power source: 3φ,380V,50Hz

> Control power source: 220V,50Hz or 24DC

> Type of main drive : Vertical lifting type

> Type of tire manufactured: Steel-belted tire





Applications:



Used for vulcanization of steel-belted tire





Specifications



Model

LLY1330BBC4B

Tire parameters  Diameter scope of tire

14″- 20″

O.D. of vulcanized green tire

560mm-950 mm

Height of vulcanized green tire

300mm-500 mm

O.D. of vulcanized tire

600mm-950 mm

Height of vulcanized tire

155mm-360 mm

Maximum setting steam pressure

(Decided by user)

Air cylinder

Japan SMC Germany FESTO

Solenoid valve

Japan SMC Germany  FESTO

Maximum inner pressure nitrogen of vulcanization

2.4MPa

Type of tire manufactured

Steel-belted tire

Mold-opening/closing time

≤25 sec

Circle

≤80 sec

Adjustment of  chuck gap

Manually/automatically

Three pneumatic components (air pressure regulator, air filter and atomized lubricator)

SMC

Nitrogen balance valve

USA HONEYWELL

Rotary connector

Japan ROCKY /Korea VALAS

Maximum mold clamping force

2000 KN

Hydraulic pump

Japan YUKEN Germany  REXROTH USA VIKERS





Why to choose our Tire Curing Press



1: Advantages

    small dimensions
    frame subjected to endurance test
    high closing force

2: The design pressure of the hydraulic system is not easy to generate leakage in low pressure range.

3: Flange is used to connect all pipes and valves, convenient for disassembly and maintenance;

4: Four position after inflating device using the cylinder turning, the hub motor automatically adjust width, the rest of the action is driven by cylinder;

5: The lifting position of manipulator increase proximity switch, in each production cycle, automatic correction height, guarantee the loading position height unchanged;

6: Replacing the tire specifications, detector swift of the lifting ring using adaptive, without manual adjustment;

7: Central organization

B-type central organization is made of stainless steel, formed by welding annular base, cylinder body and cylinder base together. It is suitable for structure with nitrogen setting and vulcanization process. It is configured with two semi-clamp-rings, with upper ring movement driven by oil pressure and setting height controlled by displacement transducer (placed inside);

8: Perfect design concept for the truck curing press "Type H" to cover specific requirements for types of tyres such as SUPER SINGLE for example

9: Electrical control system

Electrical control system has ways of fully automatically control and manually control to complete the process such as tire-mounting, setting, vulcanization, tire-discharging and back air-charging etc.

Adopt PLC real time control and touch screen 12″ industrial tablet PC to complete parameter setting, monitoring and record.
