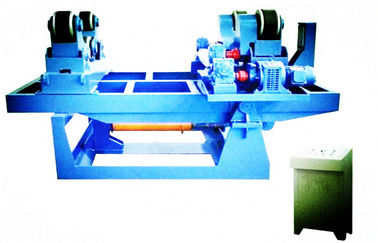

Welding Pipe Rotator

Welding Pipe Rotator
Welding Pipe Rotator Welding Pipe Rotator

Large Image :  Welding Pipe Rotator

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE,ISO9000
Model Number: HGK*T series
OEM: Acceptable
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 25-35 days
Payment Terms: TT/LC
Supply Ability: 100sets/month.
Price Terms: FOB (Shanghai) or CIF (named port)
Detailed Product Description
High Light:

pipe rollers for welding

,

pipe welding rotators

Welding Pipe Rotator



1. Quick Detail



  • This type of welding rotator is special designed for the welding of wind tower flange,and special design also is available;
  • Tilt the flange seam to best welding position to ease the automatic welding;



2. Introduction



This series welding rotators are specially used for flange welding. It can put the welding seam to the best position by tilting it and then furnish the SAW welding process. It’s convenient and easy.

We also tailor made up your requirements. Please communicate with us for more details.



3. Main Parameters



Model

HGK20T

Max loading T

20

Suit diameter mm

Min

1000

Max

4000

PU Roller mm

Dia

350

Width

200

Linear speed mm/min

100—1000

Tilt angle °

20°

Speed Control

VFD

Motor power kW

2*1.1

Above are our standard models and parameters, and it can be designed and manufactured on request.

*We reserve the right to alter specifications without prior notice.



4. Main features



The standard models of our roller beds or welding rotators have the following features:

  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm
  •  gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • The steel structure rack is the loading rack, make the active of support welding turning roll to load the weight
  •  of work-piece and adjust the tilt angle, avoiding the drift of work-piece;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
  •  painting;
  • Upper surface of base is treated with fine machining;
  • Roller distance is lead-screw adjustable and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:

  • Roller material options: Metallic or Rubber roller;
  • Interface for integral control with welding column&boom;
  • Foot switch;



5. Supply range



  • Driving turning roll                                          1set
  • Idle turning roll                                                1set
  • Steel structure rack 1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable
  • 6m]                                                                 1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                                                                          1set

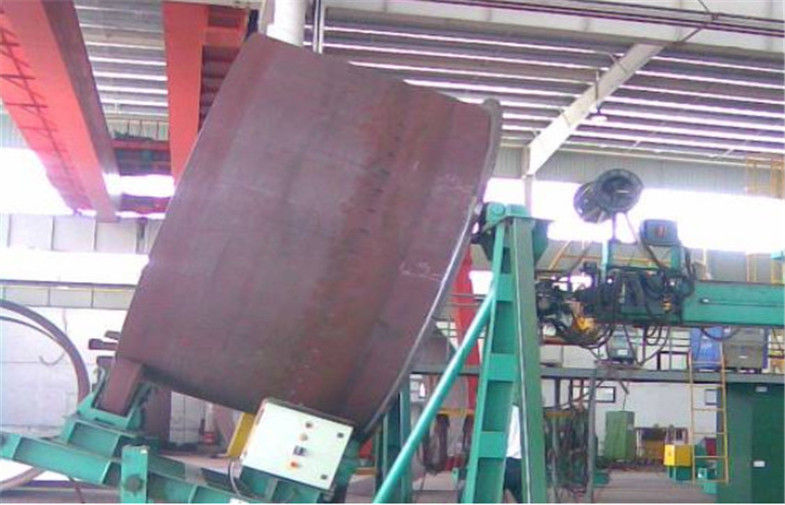

6. Reference photo



Welding Pipe Rotator 0



7. Comparative advantage

  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final
  • assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation,
  • commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;



 flange welding rotator; tilt type welding turning roll; roller beds; tilt type welding rotator
