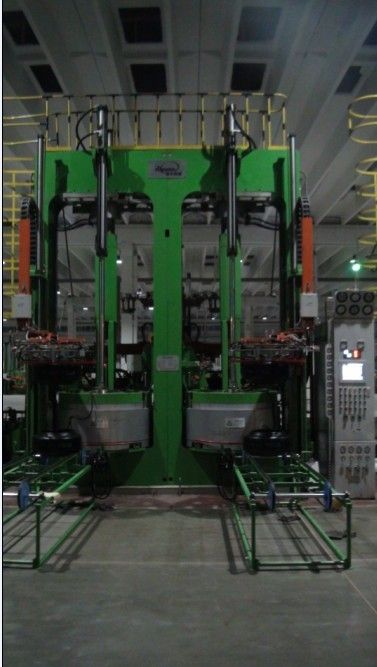

Fully Automatic Hydraulic Tyre Curing Press High Closing Force
Quick Detail:
|
Name |
Tire Curing Press |
Brand Name |
ROSNM |
|
Color |
As your request |
Feature |
B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame |
|
Warranty |
1 year |
Place of Origin |
CHANGZHOU |
|
control |
PLC |
Certificate |
ISO9001 |
Description:
PRODUCT IDENTIFICATION NUMBER: LLY1650BBC0B
> Max Mould Closing Force:3800KN
> Hydraulic Pressure:17Mpa
> Dia. of Platen:Φ1650mm
> Bead Range:20"-25"
> Power supply: 380VAC±10% 50Hz
> Auxiliary power: 220VAC 50Hz
> Equipment using the environment temperature: Max. 70 ℃
> Circle: ≤70 sec
> Maximum setting steam pressure:(Decided by user)
> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa
Applications:
Used for vulcanization of steel-belted tire
Specifications
|
Model |
RUBBER TIRE |
|
Type of main drive |
Steel-belted tire |
|
Diameter scope of tire |
16″～25″ |
|
Maximum mold clamping force |
4900KN × 2 |
|
Height of vulcanized green tire |
2350～650mm |
|
Mold type |
Segmental mold |
|
Stroke of upper ring |
1150mm |
|
Stroke of lower ring |
150mm |
|
Once-setting nitrogen pressure |
0.02—0.03Mpa |
|
Twice-setting nitrogen pressur |
0.06-0.1Mpa |
|
Nitrogen pressure |
Max. 3.0Mpa |
|
Number of working positions |
4 working positions |
|
Position changing type |
Turn 180° |
|
Adjustment of chuck gap |
Manually/automatically |
|
Three pneumatic components (air pressure regulator, air filter and atomized lubricator) |
SMC |
|
Nitrogen balance valve |
USA HONEYWELL |
|
Displacement pickup |
German Balluff,German ASM,American MTS |
|
Approach switch |
Japan OMRON,Korea AUTONICS,German TURCK |
|
Rotary connector |
Japan ROCKY /Korea VALAS |
|
Hydraulic pump |
Japan YUKEN Germany REXROTH USA VIKERS |
