Home ProductsThermal Oil Boiler

Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel

China China Concrete Autoclave Online Market certification
China China Concrete Autoclave Online Market certification
The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

I'm Online Chat Now

Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel

Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel
Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel

Large Image :  Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel

Product Details:

Place of Origin: China
Brand Name: OLYMSPAN
Certification: ASME
Model Number: YYL

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 5,000-USD50,000
Packaging Details: Shipping standard
Delivery Time: 50 days
Payment Terms: T/T,L/C
Supply Ability: 50 per month
Detailed Product Description
Pressure: Both Low And High Pressure Model Number: Thermal Oil Boiler
Fuel: Coal Usage: Industrial
High Light:

oil fired boiler

,

fuel oil boiler efficiency

Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel







Quick Details:



Pressure: Both low and high pressure

Model Number: Thermal oil boiler

Fuel: Coal

Usage: Industrial





Description:

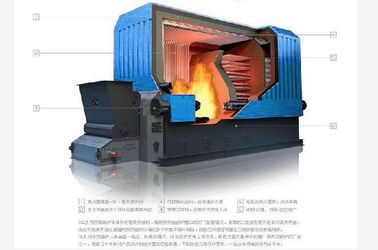

Flame and high temperature smoke produced by complete burning of fuel (coal, oil, gas, etc.) exchange heat with organic heat transfer media in the pipe by radiative transfer and convection transfer, at the same time, the organic heat transfer media is circulating in the system pushed by the pump. And then the using-heat equipment takes heat from the media, which goes back to the boiler after heat exchange. So it is an organic heat circulation system.





Specifications:



Place of Origin

Jiangsu, China (Mainland)

Brand Name

Olymspan

Model Number

Thermal oil boiler

Fuel

Coal

Output

Hot oil

Usage

Industrial

Structure

Steel tube

Pressure

Both low and high pressure

Style

Both horizontal and vertical

Type

Natural Circulation

Heat transmission

Radiative, convection

Medium

Oil, biphenyl, molten salt

Pressure

1, 1.3, 1.6 Mpa

Temperature offered

350. 385, 450 ℃

Power

180-14500Kw

Termal efficiency

80-90%

Capacity of medium

0.07-28 m³

Circulation capacity

20-800㎡/h




Applications:



Chemical: polymerization, condensation, distillation, concentration, evaporation, fusion

Fat: decomposition, deodorization, distillation of aliphatic acid, heating, hydrogenation,esterification.

Petrochemical: rectification, heating, thermal insulation

Plastic&Rubber: hot-press, calender, extrusion, vulcanization molding, artical leather, manufacture

Textile staining: heat setting, dry, curing

Fiber: polymerization, fusion, mould pressing, thermosetting, extension, dry

Carbon: bitumen fusion, dripping, mixing,molding

Wood: veneer, MDPE,HDPE,lamination flooring,birch hot-pressing, drying

Metal: pickling, electroplate, coating, oil bath, heat-treatmen

Coating: basting and drying, vehicle, plane, hot forming, hyperthermia bonding, drying

Construction: highway hitumen, dissolving, thermal insulation

Cement: fuel heating

Electric: resin impregnation, melting&holding

Air-condition: radiant heating

Others: different application of high temperature heat source below 350°C.



Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel 0

Competitive Advantage:



1. High temperature in a low pressure

2.Less water, electricity, production cost

3. Easily temperature control.

3. High heat efficient

4. Excellent operation control system

5. Safe monitor device

6.  Stable heat system



Coal Fired Vertical Thermal Oil Boiler For Industrial , Hot Oil And Coal Fuel 1
