Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie

Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie
Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie

Large Image :  Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE
Model Number: HGK300Y
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 30sets/month
Detailed Product Description
High Light:

vessel turning rolls

,

pipe rollers for welding

Motorized Lead Screw type Pipe Welding Rotator 300T PU Roller with Motorized Moving Bogie





Quick Detail



  • 300T conventional pipe welding rotator with moving bogie and PU rollers;
  • Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Quick connections joints, easy electric connections;
  • Roller distance is bolt adjustable and roller surrounding angle among 45°~110°;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • All motion parts have lubrication system;
  • CE and ISO9001:2008 certified, safe and reliable;





1. Main Parameters



Model

HGK300Y

Max loading T

300

Suit diameter mm

Min

2000

Max

6500

PU Roller mm

Dia

-700

Width

-300

Linear speed m/h

6—60

Speed Control

VFD

Roller motor power kW

2×5.5

Bogie motor powr kW

2*2.2



2. Introduction


The series turning rolls are a centerline adjustable roller. With this type of roll, each wheel is driven independently from one another with its own motor. The turning rolls, which maintain a constant centerline, can rotate work pieces with diameters ranging as small as 150mm up to 8000mm and load capacities from 2 ton to 1,000 metric tons.

The PU/rubber-tired rollers support the load. The design protects the rubber from overloading and decreases the overall roller width.



Powering this unit is an adjustable frequency AC Drive and two (2) inverter duty AC motors.

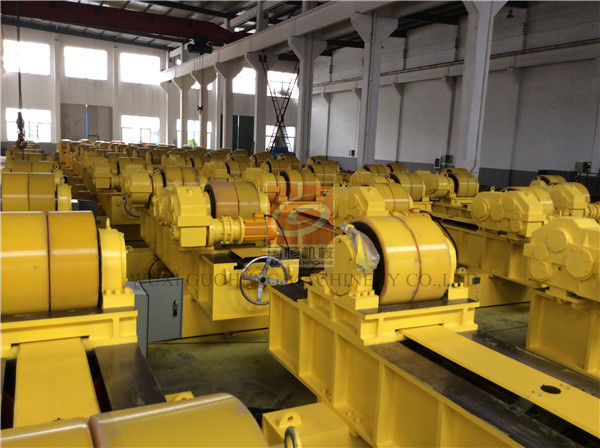

3. Reference Photos



Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie 0



Reliable Conventional Pipe Welding Rotator 300T PU Roller With Moving Bogie 1





4. Comparative advantage



  • ISO9001&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;



Tag: pipe welding rotator , tank rotator , centerline adjustable turning roll
