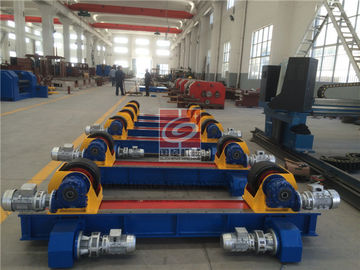

Adjustable Pipe Welding Rotator 10T Conventional PU / Metallic Roller
Quick Detail
1. Main Parameters
Model | XHGK10 | |
Max loading T | 10 | |
Suit diameter mm | Min | 250 |
Max | 4000 | |
Rubber Roller mm | Dia | 300 |
Width | 120 | |
Metallic roller mm | Dia | 290 |
Width | 38 | |
Linear speed m/h | 6--60 | |
Speed Control | VFD | |
Motor power kW | 2×0.55 | |
Roller distance mm | Min | 400 |
Max | 1780 |
The series turning rolls are a centerline adjustable roller. With this type of roll, each wheel is driven independently from one another with its own motor. The turning rolls, which maintain a constant centerline, can rotate work pieces with diameters ranging as small as 150mm up to 8000mm and load capacities from 2 ton to 1,000 metric tons.
The PU/rubber-tired rollers support the load. The design protects the rubber from overloading and decreases the overall roller width.
The rubber-tired rollers use a steel support ring in combination with the rubber to support the load. The design protects the rubber from overloading and decreases the overall roller width.
Powering this unit is an adjustable frequency AC Drive and two (2) inverter duty AC motors.
4. Comparative advantage
Tag: pipe welding rotator , tank rotator , centerline adjustable turning roll , bolt adjustable roller beds
