Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive

Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive
Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive

Large Image :  Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9001
Model Number: HGZ40
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Seaworthy Packing
Delivery Time: 15 Days
Payment Terms: TT/LC
Supply Ability: 50sets/month
Detailed Product Description
High Light:

pipe rollers for welding

,

pipe welding rotators

Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive





Quick Detail





  • 40T self - aligning rotator with PU rollers;
  • Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Quick connections joints, easy electric connections;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • All motion parts have lubrication system;



1. Main Parameters



Item Parameters
Model HGZ40
Rated load (T) 40
Load when more than D3 (T) 40
D3 (mm) 1388
Load when less than D3 (T) 30
Suitable work-piece d mm 600
D mm 4200
Roller Dia. and Width PU roller D1 400
W3 120
Metallic roller D2 394
W4 40
Linear speed (m/h) 6-60
Way of speed control VFD
Motor power (kW) 3
Roller distance (mm) A 1600
Power supply 440V 60HZ 3P


2. Introduction


The series turning rolls are a unique self-aligning roller. When loading your work piece into the rolls, four self-aligning wheels automatically move into the position that provides the best support for the work piece. The self-aligning rollers which maintain a constant centerline, can rotate work pieces with diameters as small as 600mm up to 4200mm and weights ranging from 5 ton 200 metric tons.



The PU/rubber-tired rollers use a steel support ring in combination with the rubber to support the load. This design protects the PU/rubber from overloading and decreases the overall roller width.



Powering this unit is adjustable frequency AC Drive and one (1) inverter duty AC motor.





3. Reference Photos

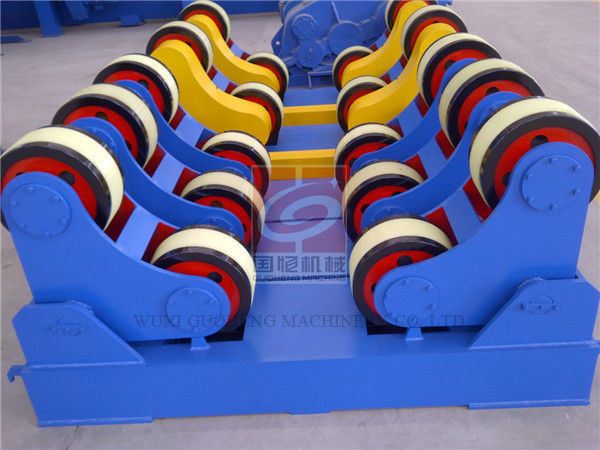

Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive 0





4. Comparative advantage



  • ISO9001&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;



Tag: pipe welding rotator , tank rotator , self -aligning turning roll
