Automatic Pipe Welding Rotator

Large Image : Automatic Pipe Welding Rotator

Product Details:

Place of Origin:	China
Brand Name:	Guoheng
Certification:	CE,ISO9000
Model Number:	XHGK series
OEM:	Acceptable

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time:	25 days
Payment Terms:	TT/LC
Supply Ability:	10sets/month.
Price Terms:	FOB (Shanghai) or CIF (named port)

Contact Now

Detailed Product Description

High Light:

pipe rollers for welding

pipe welding rotators

Automatic Pipe Welding Rotator

Quick Detail

Conventional bolt adjustable type;
Fine machining to upper surface of base;
All motion parts have lubrication system;
Lifting lug on the base of roller bed;
Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;

1. Introduction:

This series pipe welding rotators are bolt adjustable type. It also can take self-alignment/self-centering rack.

Our standard welding roller beds are designed for maximum workpiece loads from 2T to 250T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.

2. Main Parameters

Model		XHGK2	XHGK5	XHGK10	XHGK20	XHGK40	XHGK60	XHGK80	XHGK100	XHGK160	XHGK250
Max loading T		2	5	10	20	40	60	80	100	160	250
Suit diameter mm	Min	150	250	250	250	600	700	700	700	1000	1000
Suit diameter mm	Max	2600	2800	4000	4200	4500	5000	5500	6500	6000	7500
Rubber Roller mm	Dia	200	250	300	350	400	450	500	550	-	-
Rubber Roller mm	Width	80	100	120	120	120	120	120	120	-	-
Metallic roller mm	Dia	190	240	290	340	390	440	494	540	620	700
Metallic roller mm	Width	16	20	38	45	60	70	80	100	220	260
Linear speed m/h		6--60
Speed Control		VFD
Motor power kW		2×0.18	2×0.37	2×0.55	2×1.1	2×1.5	2×1.5	2×2.2	2×2.2	2×4	2×5.5
Roller distance mm	Min	260	400	400	450	800	880	900	1000	800	1200
Roller distance mm	Max	1160	1200	1780	1950	2000	2200	2500	2800	2800	4000
Above are our standard models and parameters, and it can be designed and manufactured on request.

*We reserve the right to alter specifications without prior notice.

3. Main features

The standard models of our pipe welding rotators or roller beds have the following features:

Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking
worm gear reducers;
Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before
painting;
Fine machining to upper surface of base;
Roller distance is bolt adjustable and roller surrounding angle among 45°～110°;
All motion parts have lubrication system;
Main electric elements are ABB/Siemens brands;
Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
Lifting lug on the base of roller bed;
Standard color:

Optional features:

Roller material options: Metallic or PU roller;
Undercarriage/travel boogie;
Interface for integral control with welding column&boom;
Self-centering/self-alignment rack;
Foot switch;
Servo drive;
Anti-explosion motor&control panel;

4. Supply range

Driving turning roll 1set
Idle turning roll 1set
Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m(cable for XHGK250 is 8m)] 1set
Technical documents (with manual book, conformity certificate, packing list, etc) 1set

5. Reference drawing

Automatic Pipe Welding Rotator 0

6. Reference photo

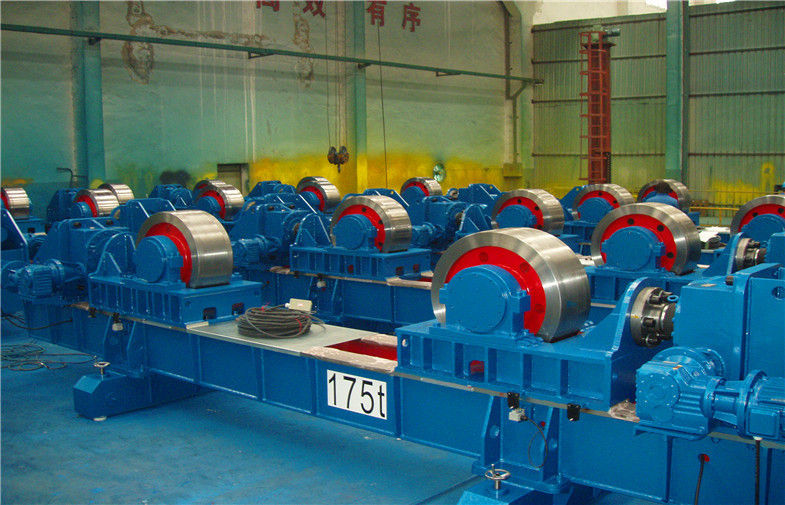

Automatic Pipe Welding Rotator 1

7. Comparative advantage

ISO9000&CE certified;
Professional and experienced engineer team to ensure the advanced design about structure and electric;
Experienced and skilled workers to care for each work flow from material cutting, welding, grindig to final
assembly and testing to ensure high machine quality;
Professional and experienced after sale service team to guarantee quick and satisfied installation,
commissioning or service;
Optimum materials and outsourcings to ensure the best performance;
Commissioning and testing before delivery;
Factory inspection is encouraged;
