2T Lead - screw adjustable Pipe Welding Rotator for boiler with Rubber Rollers

2T Lead - screw adjustable Pipe Welding Rotator for boiler with Rubber Rollers
2T Lead - screw adjustable Pipe Welding Rotator for boiler with Rubber Rollers

Large Image :  2T Lead - screw adjustable Pipe Welding Rotator for boiler with Rubber Rollers

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9000
Model Number: CHGK series
OEM: Acceptable
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container;
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Detailed Product Description
High Light:

vessel turning rolls

,

pipe rollers for welding

10T Lead Screw Adjustable Pipe Turning Rolls , Pipe Welding Rollers





Quick Detail



  • Lead-screw adjustable type;
  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;



1. Introduction



This series pipe welding rotators are lead-screw adjustable type.

Our welding roller beds designed for maximum workpiece loads from 2T to 40T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.



2. Main Parameters



Model

CHGK2

CHGK5

CHGK10

CHGK20

CHGK40

Max loading T

2

5

10

20

40

Suit diameter mm

Min

180

250

320

400

600

Max

2100

3000

3800

4200

4500

Rubber Roller mm

Dia

200

250

300

350

400

Width

80

100

120

120

120

Metallic roller mm

Dia

190

240

290

340

390

Width

16

20

38

45

60

Linear speed m/h

6--60

Speed Control

VFD

Motor power kW

2*0.18

2*0.37

2*0.55

2*1.1

2*1.5

Roller distance mm

Min

300

400

480

600

800

Max

950

1300

1660

1800

2000

Above are our standard models and parameters, and it can be designed and manufactured on request.


*We reserve the right to alter specifications without prior notice.


3. Main features



The standard models of our pipe welding rotators or roller beds have the following features:



  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Upper surface of base is treated with fine machining;
  • Roller distance is lead-screw adjustable and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:



  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Anti-explosion motor&control panel;



4. Supply range



  • Driving turning roll                                          1set
  • Idle turning roll                                                1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m]                                                       1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                                                                          1set



5. Structure drawing



2T Lead - screw adjustable Pipe Welding Rotator for boiler with Rubber Rollers 0



6. Reference photo

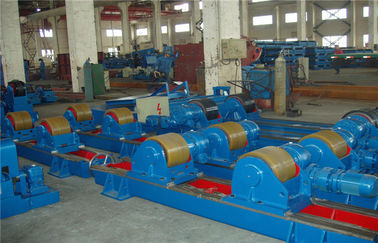

2T Lead - screw adjustable Pipe Welding Rotator for boiler with Rubber Rollers 1
