Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T

China China Concrete Autoclave Online Market certification
China China Concrete Autoclave Online Market certification
The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

I'm Online Chat Now

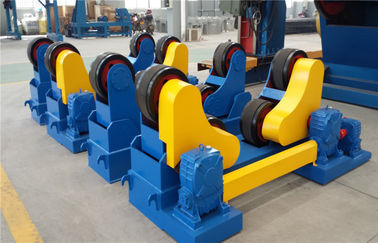

Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T

Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T
Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T

Large Image :  Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9000
Model Number: HGZ series
OEM: Acceptable
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container;
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price term: FOB (Shanghai) or CIF (named port)
Detailed Product Description
High Light:

vessel turning rolls

,

pipe welding rotators

Self Aligning Pipe Welding Rotator for tank , pipe welding equipment





Quick Detail



  • The self- align/adjusting rotator is suitable for circular pipe/tank/vessel welding;
  • The distance between wheels can be adjustable by it self.
  • Double motor drive system which is more stable and reliable;
  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;



1. Introduction



This series pipe welding rotators are self-alignment/self centering type with rubber rollers. It's double motor driving.

Our welding roller beds designed for maximum workpiece loads from 80T to 100T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.



2. Main Parameters



Model

HGZ80

HGZ100

Max loading T

80

1000

Suit diameter mm

Min

850

6000

Max

5000

2800

Rubber Roller mm

Dia

500

500

Width

120

120

Metallic roller mm

Dia

494

494

Width

60

80

Linear speed m/h

6--60

Speed Control

VFD

Motor power kW

2*2.2

2*2.2

Roller distance mm

2000

2200

Above are our standard models and parameters, and it can be designed and manufactured on request.

              *We reserve the right to alter specifications without prior notice.



3. Main features



The standard models of our roller beds have the following features:

  • Double motor drive system which is more stable and reliable;
  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:

Optional features:



  •  Roller material options: Metallic or PU roller;
  •   Undercarriage/travel boogie;
  •   Interface for integral control with welding column&boom;
  •   Foot switch;
  •   Servo drive;
  •   Anti-explosion motor&control panel;



4. Supply range



  • Driving turning roll                                          1set
  • Idle turning roll                                             1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with   cable 6m]                           1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                                   1set



5. Structure drawing



Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T 0



6. Reference photo



Self - aligning turning Pipe Welding Rotator For tank / vessel Double motor 80T — 100T 1
