Conventional Pipe Welding Rotator with metallic wheels , adjustable turning rolls 100T

Conventional Pipe Welding Rotator with metallic wheels , adjustable turning rolls 100T
Conventional Pipe Welding Rotator with metallic wheels , adjustable turning rolls 100T Conventional Pipe Welding Rotator with metallic wheels , adjustable turning rolls 100T

Large Image :  Conventional Pipe Welding Rotator with metallic wheels , adjustable turning rolls 100T

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9000
Model Number: HGK
OEM: Acceptable
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets/month
Price terms: FOB (Shanghai) or CIF (named port)
Detailed Product Description
High Light:

vessel turning rolls

,

pipe rollers for welding

Conventional Pipe Welding Rotator 60T for Wind Tower Pole Painting , Metallic Roller



Quick Details



  • Special rotator with metallic wheels for sand blasting;
  • Steplessly controllable rotary drives by means of A.C. anti-explosion motor drive via self-locking worm gear reducers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;



1. Introduction



This is special roller beds for tank/pipe sand blasting processes. While, it also can be considered as common turning rolls in your production. We only have 60T&100T as our standard roller beds.

If you have special requirements, please contact us.



2. Main Parameters



Model

HGK60PS

HGK100PS

Max loading T

60

100

Suit diameter mm

Min

1000

2000

Max

4000

4500

PU Roller mm

Dia

500

500

Width

400

480

Linear speed mm/min

100—1000

Way of speed control

VFD

Boogie travel speed mm/min

300—3000

Roller motor power kW

2*1.5

2*2.2

Boogie motor power kW

2*0.75

2*1.1

Inner rail span mm

1930

2000

Above are our standard models and parameters, and it can be designed and manufactured on request.


*We reserve the right to alter specifications without prior notice.





3. Main features



The standard models of our roller beds for sand blasting have the following features:

  • This special turning rolls consist of one driving bolt adjustable turning roll, one idle bolt adjustable turning roll and electric control system, etc;
  • All the connectors are designed with safety protections and improved airproof performance to ensure the machine can work in severe surroundings;
  • Special structure design to avoid sand deposit;
  • Steplessly controllable rotary drives by means of A.C. anti-explosion motor drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • With travel boogie, very convenient to transfer the material;
  • Metallic wheels;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Fine machining to upper surface of base;
  • Roller distance is bolt adjustable and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:



  • Metallic wheel;
  • Foot switch;
  • Servo drive;



4. Supply range



  • Driving turning roll                                           1set
  • Idle turning roll                                              1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m]                              1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                                     1set

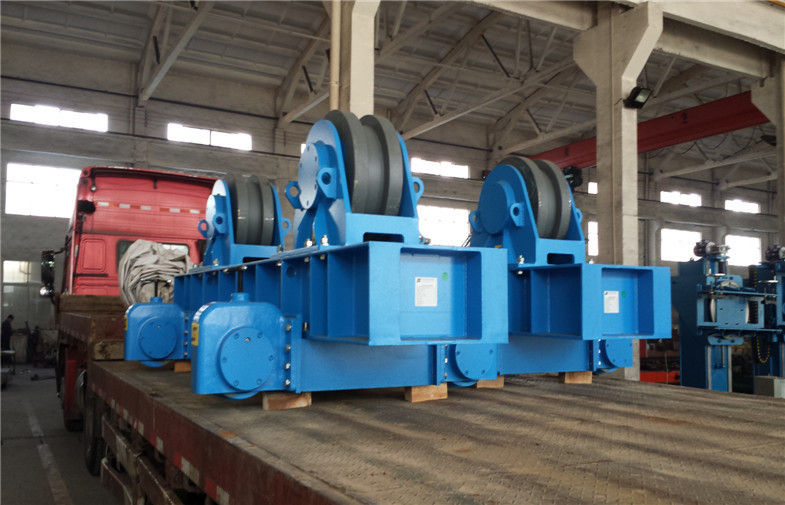

5. Reference photo



Conventional Pipe Welding Rotator with metallic wheels , adjustable turning rolls 100T 0



6. Comparative advantage



  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation,commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;
