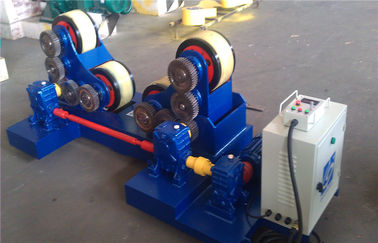

5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls

5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls
5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls

Large Image :  5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls

Product Details:
Place of Origin: China
Brand Name: Guoheng
Certification: CE, ISO9000
Model Number: HGZ series
OEM: Acceptable
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: Mainframe naked in container and electric control part packed in plywood case then in container;
Delivery Time: 25days
Payment Terms: TT/LC
Supply Ability: 20sets
Price Terms: FOB (Shanghai) or CIF (named port)
Detailed Product Description
Name: Self Centering Pipe Rotator Applicable Industries: Piping, Wind Tower, Boiler, Chemical, Automatic Welding, Etc
OEM: Acceptable
High Light:

vessel turning rolls

,

pipe welding rotators

5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls



Quick Detail



  • This series pipe welding rotators are self-alignment/self centering type with rubber rollers.
  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;



1. Introduction



This series pipe welding rotators are self-alignment/self centering type with rubber rollers.

Our welding roller beds designed for maximum workpiece loads from 5T to 60T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.



2. Main Parameters



Model

HGZ5

HGZ10

HGZ20

HGZ40

HGZ60

Max loading T

5

10

20

40

60

Suit diameter mm

Min

250

320

500

600

750

Max

2300

2800

3500

4200

5000

Rubber Roller mm

Dia

250

300

350

400

450

Width

100

120

120

120

120

Metallic roller mm

Dia

244

294

344

394

444

Width

20

25

30

40

50

Linear speed m/h

6--60

Speed Control

VFD

Motor power kW

0.75

1.1

1.5

3

4

Roller distance mm

900

1100

1350

1600

1800

Above are our standard models and parameters, and it can be designed and manufactured on request.


 *We reserve the right to alter specifications without prior notice.



3. Main features



The standard models of our pipe welding rotators or roller beds have the following features:

  • Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers;
  • Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers;
  • Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
  • Roller distance is self-aligned and roller surrounding angle among 45°~110°;
  • All motion parts have lubrication system;
  • Main electric elements are ABB/Siemens brands;
  • Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard;
  • Lifting lug on the base of roller bed;
  • Standard color:



Optional features:



  • Roller material options: Metallic or PU roller;
  • Undercarriage/travel boogie;
  • Interface for integral control with welding column&boom;
  • Foot switch;
  • Servo drive;
  • Anti-explosion motor&control panel;



4. Structure drawing

5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 0



5. Supply range



  • Driving turning roll                                               1set
  • Idle turning roll                                                  1set
  • Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m]                                  1set
  • Technical documents (with manual book, conformity certificate, packing list, etc)                                                                         1set



6. Reference photo



5T - 60T Pipe Welding self - aligning Rotator with rubber rollers , tank turning rolls 1



7.Comparative advantage



  • ISO9000&CE certified;
  • Professional and experienced engineer team to ensure the advanced design about structure and electric;
  • Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality;
  • Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service;
  • Optimum materials and outsourcings to ensure the best performance;
  • Commissioning and testing before delivery;
  • Factory inspection is encouraged;



Name of the machine:
welding rotator, pipe welding rotator, pipe turning rolls, welding turning rolls, welding roller, tank turning rolls, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned welding rotator, self-aligning welding rotator, self adjustable welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, pipe welding rotator, bolt adjustable welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station;
