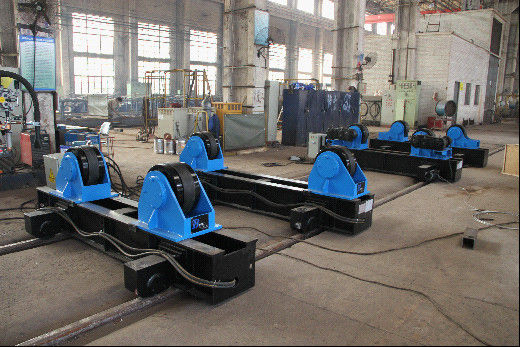

Pressure Vessel Pipe Welding Rotator Tank Turning Rolls With 30ton Loading Capacity
Quick Details:
Type:pipe turning rolls
Brand:Sunny
Condition:100% brand new
Model number:HGKS
Place of origin:Wuxi China(Mainland)
Usage: Pipe , pressure vessel , Tank turning
Voltage:110V-600V
Color:Yellow/Blue/Grey
Dimensions and weight:According to the model
Kindly Noted:
1. Model from 2T-100T, others please confirmed with us.
2. One set welding rotator include one drive roller and one idler roller, also customer can choose 1 drive and 2 idler etc.
3. Voltage standard is 380V , 50HZ , 3PH. Other voltage please kindly let us know.
4. Control panel is wired,or you can choose wireless
5. The moving system you can choose manual or motorized.
Description:
Pipe turning rolls is a kind of advanced welding equipment ,which is be researched and manufactured absorbing domestic
international advanced equipment .It is manly used for pipe , boilers ,pressure vessel ,cylinder’s assembling ,
burnishing and welding .Its series include Self-aligning rotator(HGZ),and conventional rotator(HGK).Other
customize have trolley tilting anti drift rotator ; Accordingly this device has advantages of compact structure ,
small cubage ,beautiful shape ,light weight ,convenient operating and so on. The machine can assort all kinds
of auto welding or manual welding ,improving welding quality ,lessening welding labor and improve productivity.
Applications:
Pipe turning rolls major used in cylinder welding ,such as Marine,Oil&Gas ; Offshore,Petro Chemical ; Plate Heat Exchanger ;
Charged air cooler ; Pressure Vessel ; Boiler ; Pipe system&Steel works etc.
Specifications:
|
Type |
Max loading (kg) |
Vessel diameter (mm) |
Dia. and width of the wheel(mm) |
Roller linear velocity(m/h) |
Power of motor(kw) |
Adjustable mode for space |
Way of setting |
|
|
Rubber rollers |
Metal rollers |
|||||||
|
HGK-2 |
2000 |
Φ250-1800 |
Φ200×80 |
2×Φ190×16 |
6-60 |
2×0.18 |
Manual screw adjustment or bolt shift |
AC converter stepless speed adjust
|
|
HGK-5 |
5000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
2×0.37 |
|||
|
HGK-10 |
10000 |
Φ320-2800 |
Φ300×120 |
2×Φ290×25 |
2×0.55 |
|||
|
HGK-20 |
20000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
2×1.1 |
|||
|
HGK-40 |
40000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
2×1.5 |
|||
|
HGK-60 |
60000 |
Φ700-5000 |
Φ450×120 |
2×Φ440×50 |
2×2.2 |
Bolt shift |
||
|
HGK-80 |
80000 |
Φ700-5500 |
Φ500×120 |
2×Φ490×60 |
2×3 |
|||
|
HGK-100 |
100000 |
Φ700-6000 |
Φ500×120 |
2×Φ490×80 |
2×4 |
|||
|
HGK-150 |
150000 |
Φ1000-6000 |
/ |
Φ620×220 |
2×4 |
|||
|
HGK-250 |
250000 |
Φ1000-7500 |
/ |
Φ660×260 |
2×5.5 |
|||
|
HGK-400 |
400000 |
Φ1000-7500 |
/ |
Φ750×320 |
2×7.5 |
|||
|
HGK-500 |
500000 |
Φ1000-8000 |
/ |
Φ750×400 |
2×11 |
|||
Brand using:
﹡Motor Brand is UK Invertek
﹡Element is made by Schneider
﹡Wireless Control box is made by Taiwan by Yuding
﹡Bearing is made by Harbin
Competitive Advantage:
1. All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
2. 20 % overweight design , could making the rotator focus more.
3. Double motors and reducers , and if the workpiece stress is different ,could ensure the rotator
working properly, and longer service life.
4. Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
5. All the parts using well-known brands in China or other countries . Quality is more reliable .
6. Using double row bearings.
