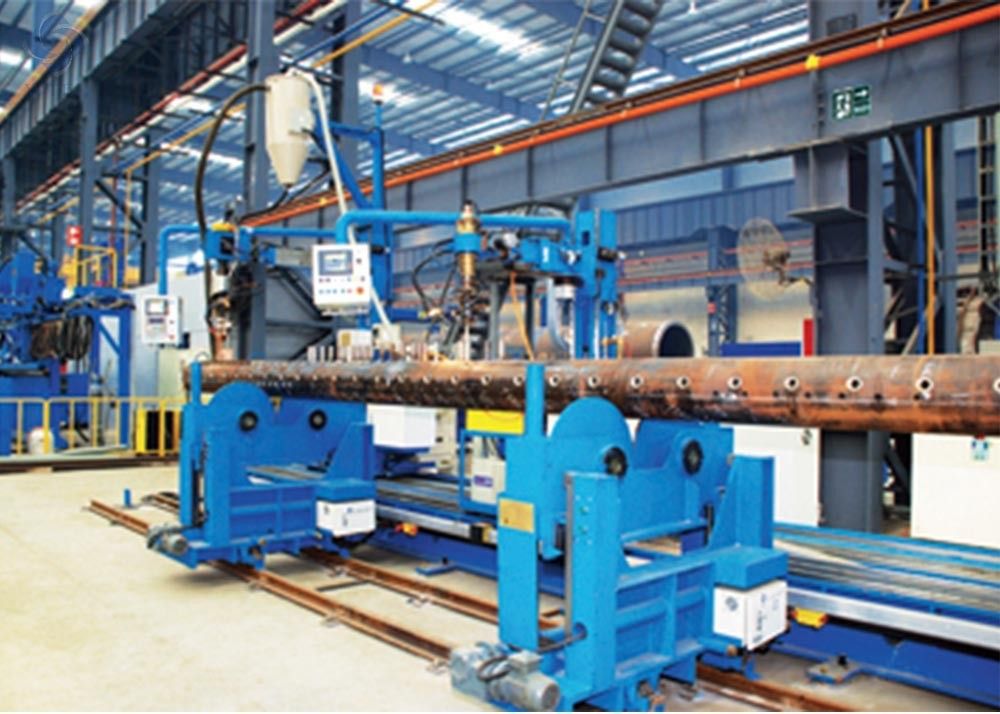

Nipple to Header Pipe Welding Machine
Description:
It adopt TIG welding inside and fine wire SAW outside.
Equipped with ESAB power source and PEH control box.
Equipped with the pneumatic balance hanger, easy to operate. Lower the work intensity greatly.
Applications:
Specially used for the orthogonal joint of short tube and cylinder.
Specifications:
| Nozzle OD | 25~76 mm |
| Min. Pitch of Tube Walls | 25 mm |
| Wire Diameter | 1.0/1.2 mm |
| Rotation Speed | 0.2-4.5 rpm |
| Rated Current | 300 A |
