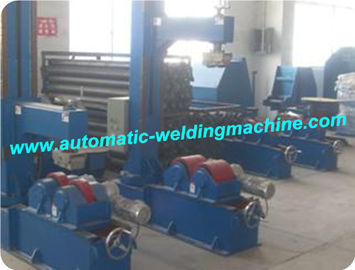

Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control

Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control
Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control

Large Image :  Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control

Product Details:
Place of Origin: CHINA
Brand Name: Friendship Machinery
Certification: CE, ISO9001
Model Number: PP Series
Detailed Product Description
High Light:

Self-Aligned Welding Rotator

,

Pipe Welding Tools




Down Press Type Pinch And Turning Pipe Welding Rotator With Frequency Control


1. Main features

        Pinch and turning pipe welding rotator adopts the advanced international program hydraulic station system, which can adjust the altitude pressure and add or release the pressure very accurately and stably; The electric temperature controller can heat very accurately and the real temperature can be clearly displayed on the meter. The twin clamps can hold/fix the joints very stable and accurate. This machine can be in assembly and as a whole at any option. The power supply can be specially designed as per the buyer’s requirement.



2. Technical data
Model
PP3
Max loading capacity
3000Kg
Applied work-piece dia./mm
Φ100-Φ1060mm
Maximum work-piece length
1500mm
Rotation speed
70-1700mm/min
Rotate torque
1000Nm
Tilt torque
5000Nm
Tilt degree
±40°
Tilt center height
910mm
Speed adjustment
AC Inverter
Pendant cable length
5m
Power
2.4KW
Weight
2000Kg



3. Structure characteristics

a. Workpiece rotation drive with frequency control, stepless speed.
b. Workpiece clamping force can be adjusted according to the workpiece circumstances, to meet the drive requirements.
c. Device configuration of the axial anti-traverse installation.
d. Depending on the welding process, can be MAG/MIG/CO2 gas protection welding.
e. Gas-welding torch has a swing function, enabling welding of thick wall pipe filling and capping the swing when welding.Automatic padding feature.
