High Light: | welding rotators,welding turning rolls,welding rollers |
---|

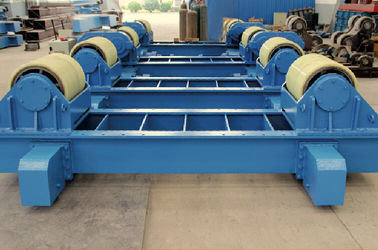

Features of self-adjusting conventional pipe tank turning rollers welding rotator
1.Include HGZ and HGK two specifications
2. For rotating pipes or vessels
3. Capacities range from 2 to 1200 tons
4. PU, Rubber, Steel or special composite wheels
5. Separation structure is suitable for any length work piece
6. Heavy Duty Chassis Design
7.The position of the wheel can be adjustable to fit the larger range of work pieces.(Max.range: Ø150mm---Ø8000mm)
Model No.
HGZ-5/10/20/40/60/80/100/150 (PU or Plastic with Steel)
HGK-2/5/10/20/40/60/80/100 (PU or Plastic with Steel)
HGK-100/160/200/250/300/500/800/1200 (Metallic)
Advantages aboutself-adjusting conventional pipe tank turning rollers welding rotator
The bolt adjusting rotator is suitable for circular pipe/tank/vessel welding.
The distance between wheels can be adjustable by bolt.
There are several specifications for customer choice; We also can special design according to customer's requirements.
Products Instruction
HGZ (self-aligning) type can be aligned by itself according to the size of cylinder. Adjustable type can be adjusted by lead-screw or bolt shifting.
HGK(Adjusting) type welding rotators using reserved holes or screw mandrel to adjust the center distance to adapt to the changes of work piece diameter. The improved AC frequency, with broad regulation range, high precision and large starting torque. PU wheel design increases the friction between wheel and work piece, standing the high temperature, work better and do not easy to skid. The whole machine adopts the welding design structure, holding the advantage of compact structure and high Rigid, convenient to install and remove, very suitable for the different working place.
