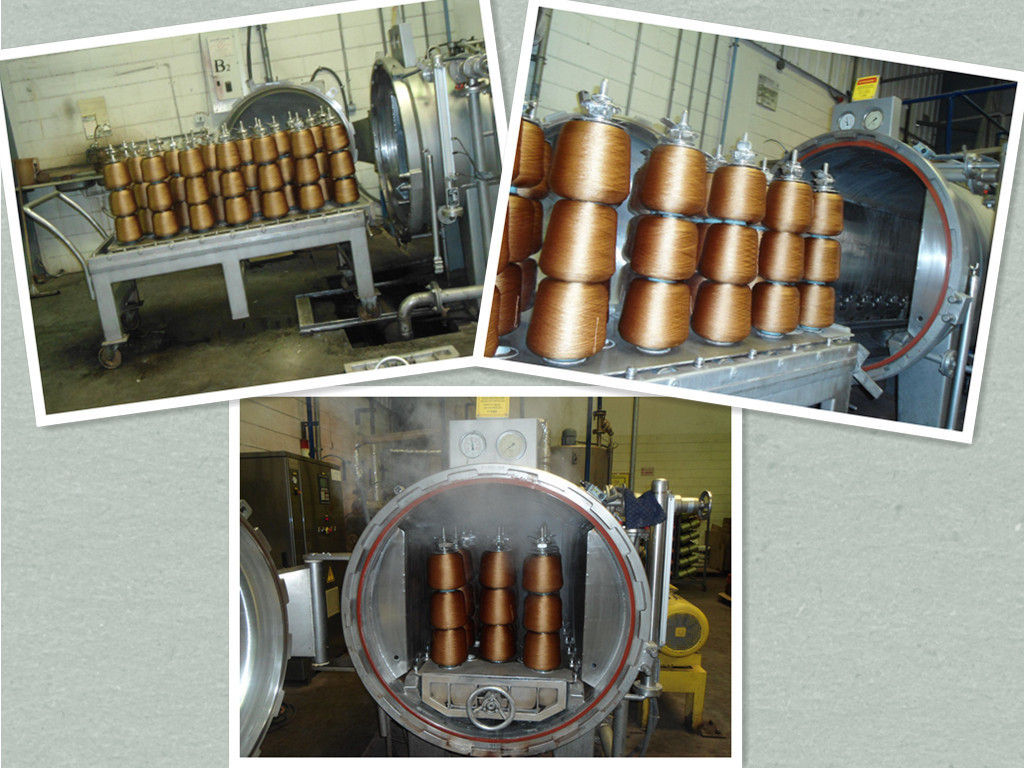

High temperature Fabric Dyeing Machine / Horizontal Cone Yarn Dyeing Machine

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High temperature Fabric Dyeing Machine / Horizontal Cone Yarn Dyeing Machine

Product Details:
Place of Origin: China Jiangsu
Brand Name: KD
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: negotiation
Packaging Details: standard package
Delivery Time: 25 days after deposit
Payment Terms: T/T
Supply Ability: 10 SETS in 2 MONTHS
Detailed Product Description
High Light:

fabric dye machine


industrial dyeing machine

High temperature Fabric Dyeing Machine / Horizontal Cone Yarn Dyeing Machine


Quick Detail:




Major configuration:

  1. Horizontal cylinder: dyeing machine body adopts Stainless Steel 316L
  2. Cover sealing: silicon rubber sealing belt, internal pressure self-sealing
  3. Uncovering type: manual uncovering
  4. Safety device: trebling safety interlocking mechanism; temperature pressure protection, ensure that the cover not open above 80 ℃ or main cylinder has pressure; main cylinder and heat exchanger have safety valve and pressure gage; there is overload,fault alarm system.
  5. Inflow outflow: double inflow double outflow, high temperature discharge
  6. Heating type: external heating
  7. Temperature control: Computer self control temperature rising,cooling,keep warming.
  8. Chemical system: equipped with open-type chemical barrel
  9. Charging system: high pressure charging pump (mechanical sealing), automatic charging.
  10. Temperature measurement: main cylinder digital readout thermograph, double-system PT100 temperature sensor.
  11. Compression system: pressure controller, automatic/manual compression and pressure exhaust function.
  12. Host processing: surface blast sanding, internal precision polishing.
  13. Overflow cleaning: cleaning mouth placed in the top, convenient for overflow cleaning.
  14. Yarn cage: equipped one cage each machine; core rod,butterfly slice,tapered end(equipped referred to user’s tube request)





Control electrical cabinet,dyeing computer,electric control: all made of stainless steel, surface polishing treatment; XYC Guangdong New Yi City special dyeing computer, PLC-full automatic function: inflow outflow,temperature rising,cooling,chemicals stirring,curve feeding/calling signal,overflow cleaning,in-outflow reversing control,compression & decompression,open & close cover,alarming etc, automatic changed to manual type anytime.

Main low pressure assembly is from Suzhou Siemens, equipeed with magnetic valve, pressure regulating valve, moisture separator etc; equipped with safety alarming function, high temperature alarming(above 80℃),normal temperature display,feeding calling,safety alarming.


Competitive Advantage:


Main pump: Taiwan Zaixiang professional dyeing pump, equipped with mechanical sealing, Southern Anhui Motor.

Frequency changer: Huichuan Frequency changer.

Pneumatic valve: in-outflow is stainless steel ball valve,others are stainless steel Y-valve.

Main cylinder liquid level: magnetic reproduce liquid level.

Mechanicals vat liquid level: mechanicals barrel equipped with bubble type pressure transmitter.


Remark: if there is any other special request, can negotiate.
