Max Mould Closing Force: | 1850KN | Hydraulic Pressure: | 25Mpa |
---|---|---|---|
Model: | LLY1330BBC4B | Bead Range: | 14-20 |
Main Power Source: | 3φ,380V,50Hz | Type Of Main Drive: | Vertical Lifting Type |
High Light: | Inner Tube Curing Press,tire vulcanizer machine |

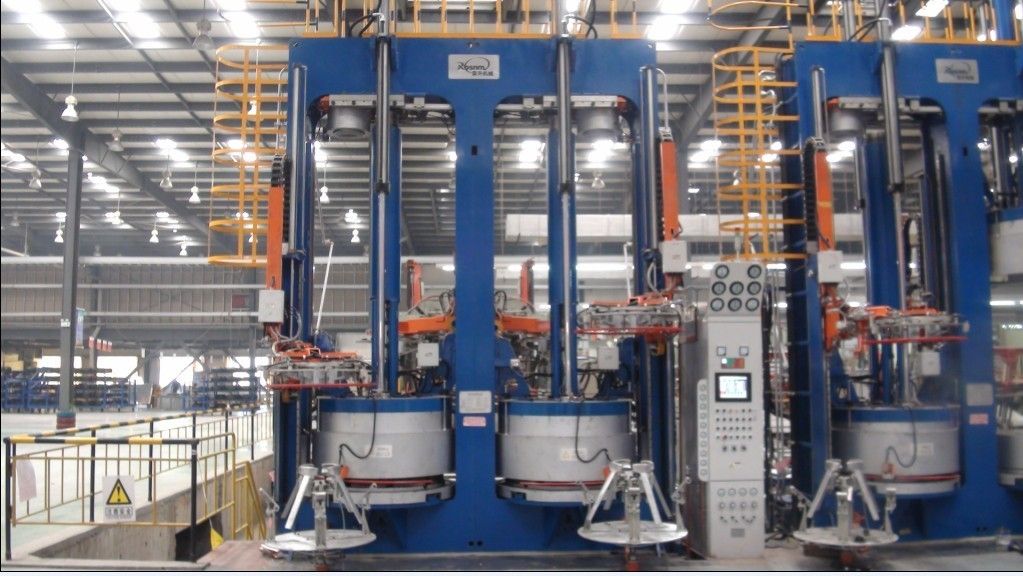

Steel belted Tire Vulcanizing Machine PLC Hydraulic With Dual Mode
Quick Detail:
Name | Tire Curing Press | Brand Name | ROSNM |
Color | As your request | Feature | B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame |
Warranty | 1 year | Place of Origin | CHANGZHOU |
control | PLC | Certificate | ISO9001 |
Applications:
Used for vulcanization of steel-belted tire
Specifications
Model | LLY1330BBC4B |
Tire parameters Diameter scope of tire | 14″- 20″ |
O.D. of vulcanized green tire | 560mm-950 mm |
Height of vulcanized green tire | 300mm-500 mm |
O.D. of vulcanized tire | 600mm-950 mm |
Height of vulcanized tire | 155mm-360 mm |
Maximum setting steam pressure | (Decided by user) |
Air cylinder | Japan SMC Germany FESTO |
Solenoid valve | Japan SMC Germany FESTO |
Maximum inner pressure nitrogen of vulcanization | 2.4MPa |
Type of tire manufactured | Steel-belted tire |
Mold-opening/closing time | ≤25 sec |
Circle | ≤80 sec |
Adjustment of chuck gap | Manually/automatically |
Three pneumatic components (air pressure regulator, air filter and atomized lubricator) | SMC |
Nitrogen balance valve | USA HONEYWELL |
Rotary connector | Japan ROCKY /Korea VALAS |
Maximum mold clamping force | 2000 KN |
Hydraulic pump | Japan YUKEN Germany REXROTH USA VIKERS |
