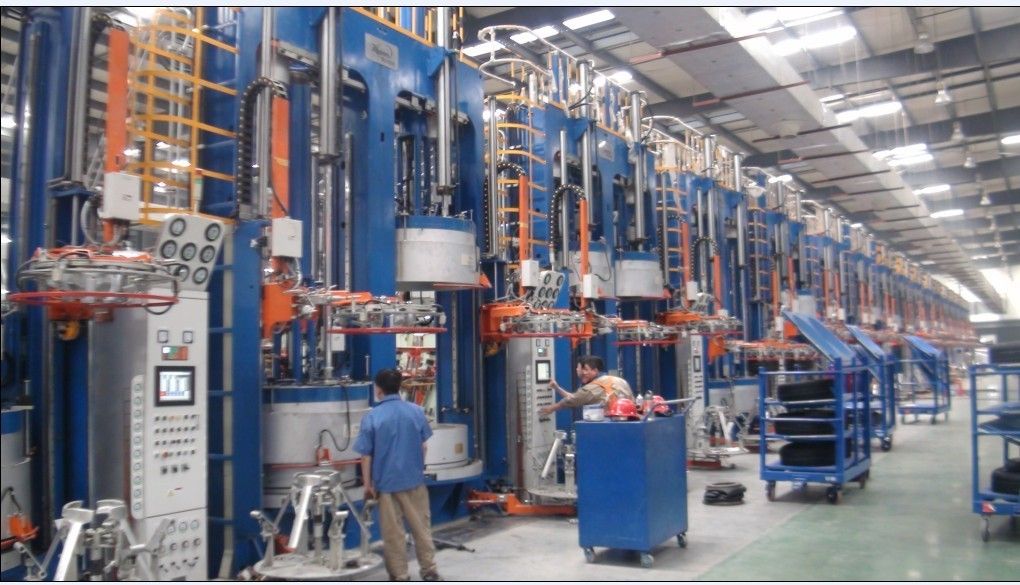

Automatic tyre vulcanizing machine , Inner Tube Curing Press

All Products

Concrete Autoclave (52)

Wood Autoclave (41)

Vulcanizing Autoclave (17)

Welding Equipment (59)

Pipe Welding Rotator (146)

Pipe Welding Positioners (121)

2 Way Pneumatic Solenoid Valve (104)

Solenoid Operated Directional Control Valve (85)

Manual Directional Control Valve (61)

Mechanical Control Valve (58)

Refrigerant Recovery Machine (64)

Laminated Glass Autoclave (43)

Gas Fired Steam Boiler (81)

Thermal Oil Boiler (67)

Dispensing Pressure Vessel (76)

The company considerate after-sales service ,And try their best to meet the requirement of customers. We will be a long-term cooperation.

—— Albert

Cooperation is very satisfactory and the Company of the past few years, we are very willing to continue long-term cooperation.

—— Dean

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

I'm Online Chat Now

Product Details:

Payment & Shipping Terms:

Contact Now

Detailed Product Description

Hydraulic Pressure:	21mpa	Tire Parameters Diameter Scope Of Tire:	14-20
Maximum Mold Clamping Force:	2000 KN	O.D. Of Vulcanized Green Tire:	560mm－950 Mm
Height Of Vulcanized Green Tire:	300mm－500 Mm	Max Mould Closing Force:	1850KN
High Light:	Inner Tube Curing Press , tire vulcanizer machine

Automatic tyre vulcanizing machine , Inner Tube Curing Press

Quick Detail:

Name	Tire Curing Press	Brand Name	ROSNM
Color	As your request	Feature	B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame
Warranty	1 year	Place of Origin	CHANGZHOU
control	PLC	Certificate	ISO9001

Specifications

Model	LLY1330BBC4B
Tire parameters Diameter scope of tire	14″－ 20″
O.D. of vulcanized green tire	560mm－950 mm
Height of vulcanized green tire	300mm－500 mm
O.D. of vulcanized tire	600mm－950 mm
Height of vulcanized tire	155mm－360 mm
Maximum setting steam pressure	(Decided by user)
Air cylinder	Japan SMC Germany FESTO
Solenoid valve	Japan SMC Germany FESTO
Maximum inner pressure nitrogen of vulcanization	2.4MPa
Type of tire manufactured	Steel-belted tire
Mold-opening/closing time	≤25 sec
Circle	≤80 sec
Adjustment of chuck gap	Manually/automatically
Three pneumatic components (air pressure regulator, air filter and atomized lubricator)	SMC
Nitrogen balance valve	USA HONEYWELL
Rotary connector	Japan ROCKY /Korea VALAS
Maximum mold clamping force	2000 KN
Hydraulic pump	Japan YUKEN Germany REXROTH USA VIKERS
