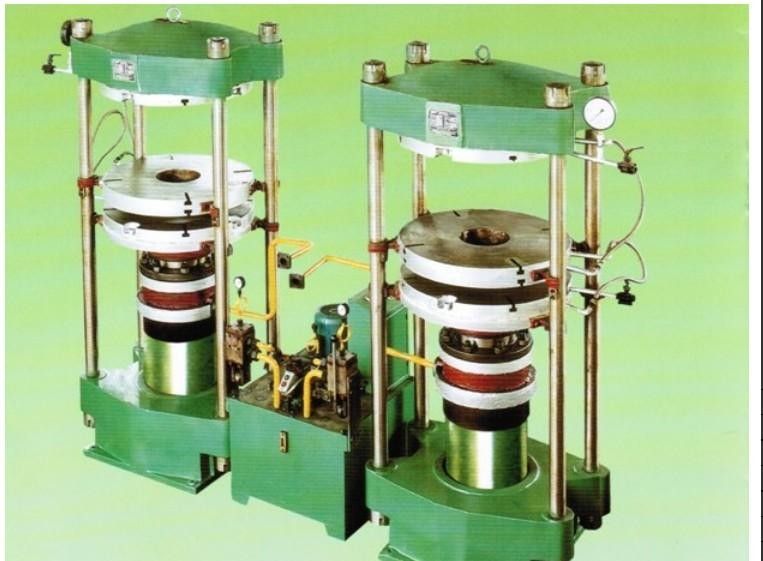

Tire curing press,Rubber Moulding Press,Rubber Machine(Xincheng,China)
Tire curing press is suitable to press a variety of tires. Hydraulic tire curing machine has three major components： host,， hydraulic system, electric control system . Host is the four column structure, composed by the beam, base, platform, cylinder, piston, heating plates and other components. The hydraulic section made by the high and low pressure hydraulic pump parts, three-phase AC motor, fuel tank, the combination valve and manual unloading valve and other accessories.
This machine is used to vulcanize outer tyre and tyre flap as well as other rubber products.
Hydraulic cylinder seal materials imported from Japan, using the leakage does not occur during the welding area will be heated through technical processing and cracking during use by customers alike
Type | YLL-600 | YLL-1000 | YLL-1200 | YLL-1400 | YLL-2000 |
Total Pressure | 60t | 100t | 120t | 140t | 200t |
Working layer number | 2 | 2 | 2 | 2 | 2 |
Steam chamber intemal dia.(mm) | 820 | 830 | 840 | 1050 | 1450 |
Piston(mm) | 250 | 300 | 360 | 360 | 400 |
High Pressure(Mpa) | 13 | 14 | 14 | 14 | 14 |
Low Pressure(Mpa) | 5 | 5 | 5 | 5 | 5 |
Pressure in bladder(Mpa) | 1.5 | 2.1 | 2.1 | 2.1 | 2.1 |
Steam-working pressure(Mpa) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Overall dimension(mm) | 1200×900×2400 | 1200×900×2358 | 1200×900×2500 | 1360×1050×3820 | 1500×1500×3200 |
Weight(kg) | 3200 | 4500 | 5500 | 18000 | 11000 |
