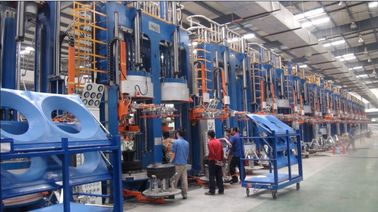

Installation Simple Temperature Control Curing Press Machine

Installation Simple Temperature Control Curing Press Machine
Installation Simple Temperature Control Curing Press Machine Installation Simple Temperature Control Curing Press Machine

Large Image :  Installation Simple Temperature Control Curing Press Machine

Product Details:
Place of Origin: CHAGNZHOU
Brand Name: ROSNM
Certification: ISO9001
Model Number: 48 model
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 60days
Payment Terms: T/T
Supply Ability: 30SET/2 MONTH
Detailed Product Description
TYPE: Steel-belted Tire Steel-belted Tire: 1850KN
Hydraulic Pressure: 21Mpa Dia. Of Platen: Φ1300mm
Dia. Of Platen: Φ1300mm Maximum Inner Pressure Of Steam: 1.6MPa
Maximum Inner Pressure Of Steam: 1.6MPa Main Power Source: 3φ,380V,50Hz
High Light:

Plate Vulcanizing Press

,

Tyre Vulcanizing Equipment

Installation Simple Temperature Control Curing Press Machine





Quick Detail:



Name

Tire Curing Press

Brand Name

ROSNM

Color

As your request

Feature

B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame

Warranty

1 year

Place of Origin

CHANGZHOU

control

PLC

Certificate

ISO9001







Description:





Installation Simple Temperature Control Curing Press Machine 0

Applications:



Used for vulcanization of steel-belted tire





Specifications



Model

RUBBER TIRE

Type of main drive

Steel-belted tire

Air control pres Maximum inner pressure nitrogen of vulcanization sure

2.4 MPa

Air control pressure

0.7 MPa

Mold number

2

Mold type

Segmental mold

O.D. of mold

≤1200 mm

Height of mold

250 mm- 500mm

Diameter of hot plate

1200mm

Inner diameter of protective hood

1220 mm

Hydraulic station

Five pieces for one

Number of working positions

4 working positions

Position changing type

Turn 180°

Adjustment of  chuck gap

Manually/automatically

Three pneumatic components (air pressure regulator, air filter and atomized lubricator)

SMC

Nitrogen balance valve

USA HONEYWELL

Rotary connector

Japan ROCKY /Korea VALAS

Hydraulic pump

Japan YUKEN Germany  REXROTH USA VIKERS





Why to choose our Tire Curing Pr ess



1:Thread dimension of annular base: 51"vulcanizer:Tr180X62:Rack

2:It’s is structure type, with sufficient rigidity.

3:Main body

The main body consists of rack, opening and closing organization of mold, vulcanization house and adjusting mold organization, pressure organization, central organization and tire pushing device and so on.

4: Opening and closing organization of mold

Lifting movement and opening & closing movement of each mold is done by two oil cylinders and single-mold vulcanization can be fulfilled. Position of opening and closing mold is controlled by rotary encoder.
