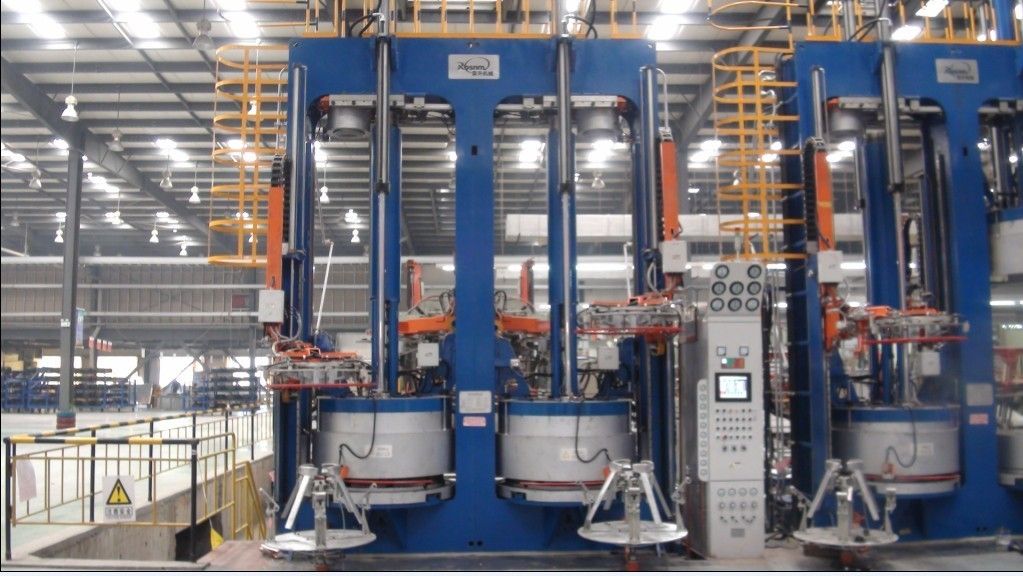

Vertical Lifting PLC Rubber Vulcanizer Machinery For Steel Belted Tire

Vertical Lifting PLC Rubber Vulcanizer Machinery For Steel Belted Tire
Vertical Lifting PLC Rubber Vulcanizer Machinery For Steel Belted Tire Vertical Lifting PLC Rubber Vulcanizer Machinery For Steel Belted Tire

Large Image :  Vertical Lifting PLC Rubber Vulcanizer Machinery For Steel Belted Tire

Product Details:
Place of Origin: CHAGNZHOU
Brand Name: ROSNM
Certification: ISO9001
Model Number: 48 model
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 60days
Payment Terms: T/T
Supply Ability: 30SET/2 MONTH
Detailed Product Description
High Light:

Dual Mode Curing Press

,

Plate Vulcanizing Press





ISO9001 HIGH CONTROL PRECISION Rubber Curing Press Machine





Quick Detail:



Name

Tire Curing Press

Brand Name

ROSNM

Color

As your request

Feature

B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame

Warranty

1 year

Place of Origin

CHANGZHOU

control

PLC

Certificate

ISO9001







Description:





> Maximum setting steam pressure:(Decided by user)

> Maximum inner pressure nitrogen of vulcanization: 2.4 MPa

> Maximum external pressure of steam: 1.4MPa

> Maximum inner pressure of steam: 1.6MPa

> Main power source: 3φ,380V,50Hz

> Control power source: 220V,50Hz or 24DC

> Main body of vulcanizer Types: Frame hydraulic- drive type

> Type of main drive : Vertical lifting type

> Type of tire manufactured: Steel-belted tire

> Mold-opening/closing time: ≤20 sec

> Circle: ≤70 sec

> Maximum mold clamping force: 1800KN External-temperature steam pressure   1.2Mpa

Internal-temperature steam pressure   1.6Mpa

> Max Mould Closing Force:1850KN

> Hydraulic Pressure: 21Mpa

> Dia. of Platen:Φ1300mm

> Bead Range:14"-20"

> Air control pressure:0.7 MPa

Vertical Lifting PLC Rubber Vulcanizer Machinery For Steel Belted Tire 0



Applications:



Used for vulcanization of steel-belted tire





Specifications



Model

RUBBER TIRE

Type of main drive

Steel-belted tire

Air control pres Maximum inner pressure nitrogen of vulcanization sure

2.4 MPa

Air control pressure

0.7 MPa

Mold number

2

Mold type

Segmental mold

O.D. of mold

≤1200 mm

Height of mold

250 mm- 500mm

Diameter of hot plate

1200mm

Inner diameter of protective hood

1220 mm

Hydraulic station

Five pieces for one

Number of working positions

4 working positions

Position changing type

Turn 180°

Adjustment of  chuck gap

Manually/automatically

Three pneumatic components (air pressure regulator, air filter and atomized lubricator)

SMC

Nitrogen balance valve

USA HONEYWELL

Rotary connector

Japan ROCKY /Korea VALAS

Hydraulic pump

Japan YUKEN Germany  REXROTH USA VIKERS





Why to choose our Tire Curing Pr ess



1:Thread dimension of annular base: 51"vulcanizer:Tr180X62:Rack

2:It’s is structure type, with sufficient rigidity.

3:Main body

The main body consists of rack, opening and closing organization of mold, vulcanization house and adjusting mold organization, pressure organization, central organization and tire pushing device and so on.

4: Opening and closing organization of mold

Lifting movement and opening & closing movement of each mold is done by two oil cylinders and single-mold vulcanization can be fulfilled. Position of opening and closing mold is controlled by rotary encoder.

5: Vulcanization house and adjusting mold organization

Regarding labyrinth type of hot plate, the precision of temperature uniformity of hot plate is ±1℃ after increase the temperature.

6: Adjusting mold organization and locking mold organization

Loosening mold organization and locking mold organization are driven by air cylinder and adjusting mold is with electrical drive.

7: Pressure organization

It is with down-pressure and pressure for each mold is conducted by 3-4 oil cylinders. Pressure is maintained by pressure accumulator.

8: Central organization

B-type central organization is made of stainless steel, formed by welding annular base, cylinder body and cylinder base together. It is suitable for structure with nitrogen setting and vulcanization process. It is configured with two semi-clamp-rings, with upper ring movement driven by oil pressure and setting height controlled by displacement transducer (placed inside);

9: Tire pushing device (lower ring)

Each mold is with two oil cylinders and direct pushing type.

10: Electrical control system

Electrical control system has ways of fully automatically control and manually control to complete the process such as tire-mounting, setting, vulcanization, tire-discharging and back air-charging etc.

Adopt PLC real time control and touch screen 12″ industrial tablet PC to complete parameter setting, monitoring and record.
