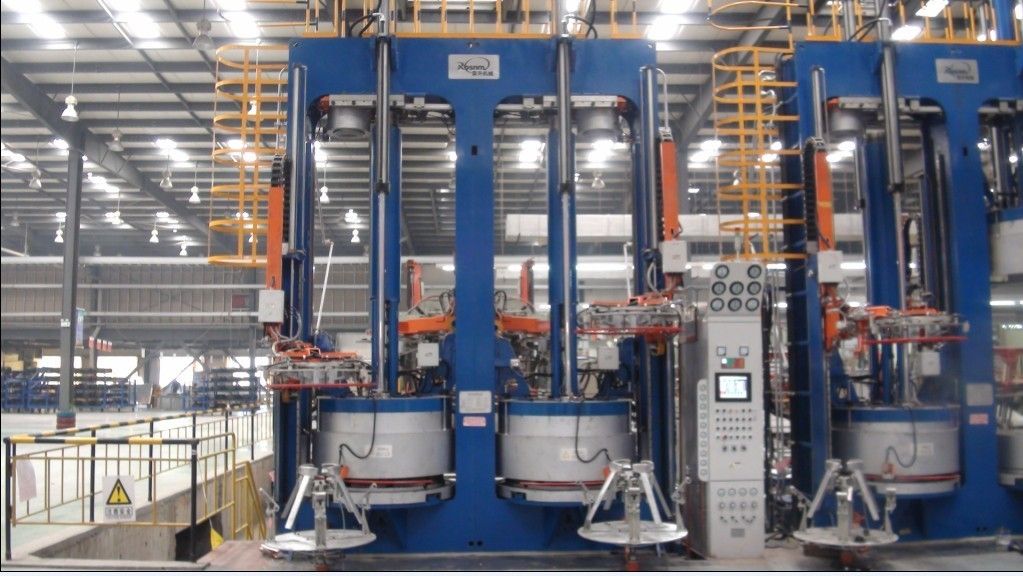

Mechanical PLC Tire Curing Press Machine With Automatic Dual mode

Mechanical PLC Tire Curing Press Machine With Automatic Dual mode
Mechanical PLC Tire Curing Press Machine With Automatic Dual mode Mechanical PLC Tire Curing Press Machine With Automatic Dual mode Mechanical PLC Tire Curing Press Machine With Automatic Dual mode

Large Image :  Mechanical PLC Tire Curing Press Machine With Automatic Dual mode

Product Details:
Place of Origin: CHAGNZHOU
Brand Name: ROSNM
Certification: ISO9001
Model Number: 48 model
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: negotiation
Packaging Details: Wooden case
Delivery Time: 60days
Payment Terms: T/T
Supply Ability: 30SET/2 MONTH
Detailed Product Description
High Light:

Plate Vulcanizing Press

,

Tyre Vulcanizing Equipment



Mechanical PLC Tire Curing Press Machine With Automatic Dual mode





Quick Detail:



Name

Tire Curing Press

Brand Name

ROSNM

Color

As your request

Feature

B (B Center) ,B (hot plate), C (open die vertical lifting) ,4B (4 station after inflating device),Pressure mould locking force,Host structure frame

Warranty

1 year

Place of Origin

CHANGZHOU

control

PLC

Certificate

ISO9001





Mechanical PLC Tire Curing Press Machine With Automatic Dual mode 0

Description:

> Maximum inner pressure of steam: 1.6MPa

> Main power source: 3φ,380V,50Hz

> Control power source: 220V,50Hz or 24DC

> Main body of vulcanizer Types: Frame hydraulic- drive type

> Max Mould Closing Force:1850KN

> Hydraulic Pressure: 21Mpa

> Dia. of Platen:Φ1300mm

> Bead Range:14"-20"

> Air control pressure:0.7 MPa

> Maximum setting steam pressure:(Decided by user)

> Type of tire manufactured: Steel-belted tire

> Mold-opening/closing time: ≤20 sec

> Nitrogen pressure                     2.4Mpa

> Once-setting nitrogen pressure   0.03—0.05Mpa

> Twice-setting nitrogen pressure        0.06—0.10Mpa

> Maximum external pressure of steam: 1.4MPa









Applications:



Used for vulcanization of steel-belted tire





Specifications

Rongsheng Machinery mainly focuses on rubber machinery equipment, and it is a comprehensive manufacturing enterprise which engaged in the automatic development, production, sales, service and consulting of high-tech products professionally. Zhejiang Rongsheng Machinery Co., LTD and Zhejiang Rongsheng Machinery Changzhou Co., LTD are attached to it. The productions of the enterprise are: rubber machinery, hydraulic dual-mode tire curing press and the rubber mechanical valves, etc., products have a good sale all over the world.









Mechanical PLC Tire Curing Press Machine With Automatic Dual mode 1
