Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Price:	negotiation
Packaging Details:	Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time:	15 working days after received your payment
Payment Terms:	30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability:	30sets per month

Contact Now

Detailed Product Description

Product Name:	Fixed Vessel Fit Up Welding Manipulator	Application:	Shell Seam Welding
Stroke Range:	8000mm*8000mm	Structure Type:	Motorized Revolve And Remove
Speed Control:	VFD Control	Linkage Control:	Available
Welding Monitor:	Option	Platform:	Inc.
Welding Power:	American Lincoln	Stair:	YES
High Light:	column boom welding machine , column and boom manipulator

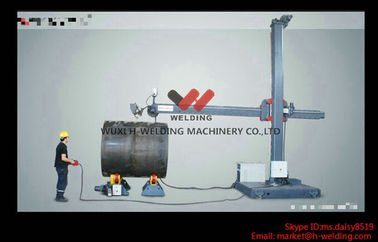

Fixed Vessel Fit Up Welding Manipulator 8*8m Automated Welding And Movable With Trolley

Specifications:

1-trolley ,2-column revolve unit,3-column,4-flux feeding and recovery system ,5-guide saddle,6-elevating unit,7-boom,8-welding system

Technical parameter		LHC5050	LHC6060	LHC7070	LHC8080
Elevating stroke mm		5000	6000	7000	8000
Retracting stroke mm		5000	6000	7000	8000
Elevating speed mm/min		1650
Retracting speed mm/min		50-1000
Minimum distance between boom and track surface mm		1290 movable with revolve		1210 stationary with revolve
Boom end maximum weight loading kg		400		500	600
Column revolving	Angle	＋180o
	Speed rpm	0.17rpm/or by manual
Trolley traveling speed mm/min		2000
Inner span of trolley rail mm		2500

Description:

All part of Electric system has reliable grounding protection, all grounding point no mixed connection.

Applications:

Column and boom welding machine is the automatic welding equipment composed together with welding power.
Widely used in industries as boiler, pressure vessel, petro-chemical machinery
