| High Light: | Gas Fired Steam Boiler |
||
|---|---|---|---|

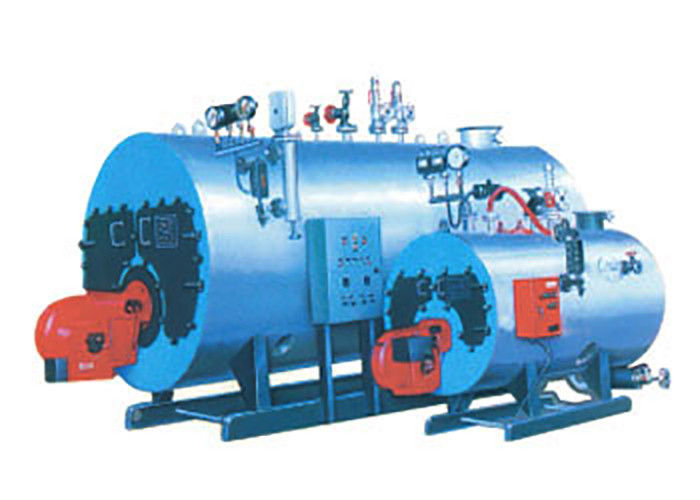

WNS series gas-fired boiler Industrial Steam Boiler / AAC Block Making Machine
Product Features:
· Compact structure, small footprint, single-layer arrangement of boiler room and infrastructure investment
· A high degree of assembly, installation cycle short, less installation costs
· Heating surface arrangement of full, reasonable, and the boiler to heat up, step-up fast enough to contribute, high thermal efficiency
· Grate inlet position at the wind, the wind position adjustable air volume independent, non-level grate speed, wide adaptation coal, burning full
· equipped with a full range of automatic control and monitoring of measuring instruments, a high degree of automation, safe and reliable. Easy to use.
Note:Due to the continuous improvement of the company's products, these products will continue to update the parameters, listed on this page is for reference only. Listed species for the plant on behalf of boiler products, such as other model parameters may need to refer to the drawing information
|
Model |
WNS1-1.0 -Y(Q) |
WNS2-1.0 -Y(Q) |
WNS4-1.25 -Y(Q) |
WNS6-1.25 -Y(Q) |
WNS8-1.25 -Y(Q) |
WNS10-1.25 -Y(Q) |
|
|
Evaporation rated(t/h) |
1 |
2 |
4 |
6 |
8 |
10 |
|
|
Rated working pressure(Mpa) |
1 |
1 |
1.25 |
1.25 |
1.25 |
1.25 |
|
|
Rated steam temperature(℃) |
184 |
184 |
193 |
193 |
193 |
193 |
|
|
Water temperature℃ |
20 |
20 |
20 |
104 |
104 |
104 |
|
|
Body water volume(m3) |
2.1 |
3 |
7.1 |
10.2 |
11.8 |
14.6 |
|
|
Boiler efficiency(%) |
>90 |
>90 |
>90 |
>90 |
>90 |
>90 |
|
|
The application of fuel |
Light oil, heavy oil, natural gas, liquefied petroleum gas, city gas |
||||||
|
Fuel consumption |
Light oil(kg/h) |
69 |
138 |
272 |
376 |
504 |
628 |
|
Heavy oil(kg/h) |
74 |
147 |
289 |
399 |
536 |
667 |
|
|
Natural gas(Nm3/h) |
79 |
158 |
312 |
431 |
578 |
720 |
|
|
LPG(Nm3/h) |
26 |
55 |
109 |
150 |
201 |
251 |
|
|
City Gas(Nm3/h) |
180 |
362 |
712 |
983 |
1319 |
1643 |
|
|
Dimensions |
length A(mm) |
4200 |
5100 |
6022 |
7151 |
7600 |
8360 |
|
width B(mm) |
2450 |
2500 |
2700 |
2800 |
3000 |
3000 |
|
|
High H(mm) |
2234 |
2380 |
2684 |
2882 |
3200 |
3200 |
|
|
Boiler weight(t) |
4.9 |
7.3 |
12.6 |
17.2 |
18.6 |
23.5 |
|
|
Import and Export caliber(mm) |
50 |
65 |
100 |
125 |
150 |
150 |
|
|
Safety valve diameter(mm) |
40×2 |
40×2 |
50×2 |
65×2 |
65×2 |
80×2 |
|
|
Chimney diameter(mm) |
350 |
400 |
500 |
600 |
700 |
700 |
|
|
Model |
WNS0.7- 0.7/95/70-Y(Q) |
WNS1.4- 0.7/95/70-Y(Q) |
WNS2.8- 0.7/95/70-Y(Q) |
WNS4.2- 0.7/95/70-Y(Q) |
WNS5.6- 0.7/95/70-Y(Q) |
WNS7- 0.7/95/70-Y(Q) |
|
|
Rated thermal power(MW) |
0.7 |
1.4 |
2.8 |
4.2 |
5.6 |
7 |
|
|
Rated water pressure |
0.7 |
0.7 |
0.7 |
0.7 |
1 |
1 |
|
|
Rated outlet water temperature |
95 |
95 |
95 |
95 |
95 |
95 |
|
|
Rated temperature of imports |
70 |
70 |
70 |
70 |
70 |
70 |
|
|
Water cycle(m3/h) |
24 |
48 |
96 |
144 |
193 |
241 |
|
|
Body water volume(m3) |
2.1 |
4.2 |
7.1 |
9.8 |
11.5 |
13.8 |
|
|
Boiler efficiency(%) |
>90 |
>90 |
>90 |
>90 |
>90 |
>90 |
|
|
The application of fuel |
Light oil, heavy oil, natural gas, liquefied petroleum gas, city gas |
||||||
|
Fuel consumption |
Light oil(kg/h) |
66 |
130 |
256 |
373 |
498 |
621 |
|
Heavy oil(kg/h) |
70 |
139 |
272 |
396 |
529 |
660 |
|
|
Natural gas(Nm3/h) |
75 |
149 |
293 |
427 |
571 |
711 |
|
|
LPG(Nm3/h) |
26 |
52 |
102 |
149 |
199 |
248 |
|
|
City Gas |
171 |
341 |
670 |
976 |
1303 |
1632 |
|
|
Dimensions |
length A(mm) |
4100 |
5038 |
6100 |
6800 |
7600 |
8160 |
|
width B(mm) |
2300 |
2280 |
2600 |
2800 |
3000 |
3000 |
|
|
High H(mm) |
3200 |
2240 |
2700 |
2900 |
3110 |
3110 |
|
|
Boiler weight(t) |
4.9 |
7.2 |
12.3 |
15.1 |
19.1 |
20.7 |
|
|
Import and Export caliber(mm) |
65 |
100 |
150 |
200 |
200 |
200 |
|
|
Safety valve diameter(mm) |
50 |
100 |
50×2 |
65×2 |
65×2 |
80×2 |
|
|
Chimney diameter(mm) |
350 |
400 |
500 |
600 |
700 |
700 |
|
