Product Details:

Place of Origin:	china
Brand Name:	KANGWEI
Certification:	ABS,BV,NK
Model Number:	According to the design and technical demand
Fuel:	oil/gas/Coal

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	negotiated
Packaging Details:	CONTAINER ,WOODEN CASE
Delivery Time:	Negotiate
Payment Terms:	T/T, L/C
Supply Ability:	depend on the designing capacity

Contact Now

Detailed Product Description

High Light:

oil steam boiler

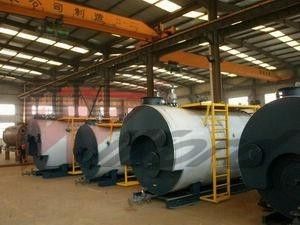

Gas / Coal / oil fired steam boiler High Pressure Steam Horizontal steam Boiler

1.Applications:

Marine /Industry

2.FACTORY ASSURANCE:

One year parts warranty
Spare parts available at ex-factory price
Different voltage available
100% tested before delivery
Minimum installation on site, electrical hook up, water pipe connection, steam pipe connection and drain only
Skid-mounted complete system available
Complete system in container available

3.SPECIFICATIONS:

Model Items		WNS0.5-0.8-Y/Q	WNS0.75-0.8-Y/Q	WNS1-0.8-Y/Q
Boiler horsepower		32 HP	48 HP	63.8 HP
Rated steam output		500 KG/HOUR	750 KG/HOUR	1000 KG/HOUR
Maximum working pressure (manual reset)		<0.8MPa / 116PSI	<0.8MPa / 116PSI	<0.8MPa / 116PSI
Saturated steam temperature		<174°C	<174°C	<174°C
Material of main body		20# carbon steel	20# carbon steel	20# carbon steel
Thickness of main body		12mm	14mm	14mm
Thermal efficiency		>88%	>88%	>88%
Fuel consumption	0# diesel	34kg/h	51kg/h	68kg/h
	Natural gas	40.6Nm3/h	60.9Nm3/h	81.2Nm3/h
	LPG	27.3kg/h	41kg/h	54.6kg/h
Packing dimensions	L	2680mm	2680mm	3982mm
	W	1660mm	1760mm	1917mm
	H	1680mm	1996mm	2090mm
