Bright Annealing SS Pipe For Thermal Power Generation / 304 316 Stainless Steel Pipe

China Bright Annealing SS Pipe For Thermal Power Generation / 304 316 Stainless Steel Pipe supplier
Bright Annealing SS Pipe For Thermal Power Generation / 304 316 Stainless Steel Pipe supplier Bright Annealing SS Pipe For Thermal Power Generation / 304 316 Stainless Steel Pipe supplier

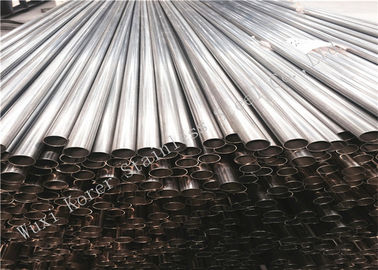

Large Image :  Bright Annealing SS Pipe For Thermal Power Generation / 304 316 Stainless Steel Pipe

Product Details:

Place of Origin: China
Brand Name: KORER
Certification: ISO 9001 And Manufacture License Of Pressure Tube
Model Number: OD: 6mm – 101.6mm, WT:0.3mm – 2.5mm

Payment & Shipping Terms:

Minimum Order Quantity: 1 Metric Tons Per Size
Price: Negotiable
Packaging Details: Wooden Boxes With Angle Steel Frame Or Seaworthy Bundle
Delivery Time: 15-45Days Or Depends on Quantity
Payment Terms: T/T L/C
Supply Ability: 10000 Metric Tons Per Year
Contact Now
Detailed Product Description
Product Name: Stainless Steel Pipe Standard: ASTM A249
Material Grade: 304 / 304L, 316 / 316L, 317L Outer Diameter: 12mm-400mm
Wall Thickness: 0.5mm – 10.0mm Application: Condenser Tube / Heat Exchanger

ASTM A249 Standard 304 / 316 SS Pipe For Thermal Power Generation


Quick detail:

Product Name

Stainless Steel Pipe

Material Grade

304 / 304L, 316 / 316L, 317L

Standard

ASTM A249

Delivery Condition

Bright Annealing

Brand Name

KORER

Application

Condenser Tube / Heat Exchanger


Description:

Standards:


ASTM A249 Standard Specification For Welded Austenitic Steel Boiler,Superheater, Heat-Exchanger And Condenser Tubes.

Item

Contents

Requirements

1

Materail

TP304, TP304L, TP304H, TP310S, TP316, TP316L, TP316TI, TP316H, TP317L, TP321

2

Welding method

TIG Welded

3

Chemical Composition

Acc.to SA249 and SA480

4

Heat Treatment

Bright Annealing Temperature 1040℃

5

Straightness

0.8mm/900mm

6

Tolerance

OD acc.to A1016/A1016M,WT +/-10%

7

Mechanical Property

Tension Test, Flattening Test, Flange Test, Reverse-Bend Test, Hardness Test, Hydrostatic Or Other Nondestructive Test, Grain Size, Reverse-Bend Test, Hardness Test


●Mechanical Property:Enlongation 45%-65%
●Expansion Test:Acc.To ASTM A249 & ASTM A1016
●Flange Test: Acc.To ASTM A249 & ASTM  A1016
●Flattening Test: Acc.To ASTM A249 & ASTM  A1016
●Hardness:HRB 75-90

Material:


America

Germany

Japan

AISI

UNS

EN/DIN

JIS

304

S30400

1.4301

X5CrNi18-10

SUS304

304L

S30403

1.4306

X2CrNi19-11

SUS304L

310S

S31008

SUS310S

321

S32100

1.4541

X6CrNiTi18-10

SUS321

316

S31600

1.4401

X5CrNiMo17-12-2

SUS316

316L

S31603

1.4404

X2CrNiMo17-12-2

SUS316L

317

S31700

1.4436

X5CrNiMo17-13-3

SUS317

317L

S31703

1.4438

X2CrNiMo18-15-4

SUS317L


Specifications:

■Product Name:Stainless Steel Pipes
■Standard: GB, ASTM/ASME, JIS, DIN
■Grade: 321, 304, 304L, 316, 316L, 317L
■Outer Diameter : 6.00mm-101.6mm
■Wall thickness : 0.30mm-2.5mm
■Length: max.40000mm or as demand
■Surface finish: Bright Annealing, Anneal and Pickled
■Manufacture technology: TIG Welding

Parts of Achivement:




PROJECT NAME

MATERIAL

SPECIFICATION(mm)

Q’TY(T)



Shang an 6# Condenser

TP317L

22*0.5/0.7

80



Indian JSW6~8# Condenser

TP304

20*0.5/0.7

130



Indian J Plant 3#

TP304

25*0.5/0.7

170



Nanre 1# 2# Condenser

TP304

25*0.5/0.7

340



Xingchang 1# 2# Condenser

TP304

25*0.5/0.7

340



Indina BALC01# 2# 3#

TP304

28*0.5/0.7

240



Indian WPC4#

TP304

20*0.5/0.7

40



Anbala 1#

TP304

25*0.5/0.7

170



Indian oil condenser 8SETS

TP316L

16*0.7/0.8/1.0

60



Fuqing 1#/2#,Fangjiashan 1#/2#

TP304

19*0.9*U

89



Indian K Plant 1# 2#

TP304

25*0.7

360



Fangjiashan Nuclear Project

TP304

19.05*0.91* U

86



Indian Chhattisgarh Power 1# 2#

TP304

25*0.7

370



Zambia 1# 2#

TP316L

22*0.7/0.9

190






Applications:


1)Pipes for Liquid Delivery.



2) Tubes for Power Industry(Thermal Power and Nuclear Power Staition)
and Petrochemical Industry:Boiler, Heat-sink, Condenser and Heat-exchanger tubes

3)Tubes for Automotive Industry:Oil tube and Exaust System Tubes.



4)Tubes for Medicine and Food Industry.



5)Tubes for Mechanical and Construction.




Competitive Advantage:

1) ISO System & Manufacture License of Pressure Tube
2)Production experience about 20 years.
3) Raw Material are from POSCO,BAO STEEL,TISCO,CRUPP ETC .
4)Market -More than 30 countries worldwide.
5)We have the most convenient transport from shanghai and timely delivery.
6)We offer competitive prices based on good quality.
7)We have high technical production line with top quality products.
8)We have win high reputation based on good quality.
9)We have strong Wooden Box With Angle Steel Frame to Protect the Pipes.
