The specifications of thermal oil boiler heating plywood
1. Thermal fluid heating systems
2. High thermal efficiency
3. Horizontal centrifugal pump
4. All welded construction
5. Thermal Oil Heater: PID Temperature Controller (FUJI Electric PXR5/9)
6. Expansion tank shipped loose for mounting at the highest point in the piping system
7. Isolation gate valves and strainer
8. SSR(Solid State Relay) control on heater circuits
9. Pressure test and Functional test of system prior to shipment
1. The application of thermal oil boiler heating plywood
Application of thermal oil boiler heating plywood
Thermal oil heater can be applied in the following areas:
1. high-temperature shaping, plate heating ,rubber,drying and printing
2. chemical industry
3. plywood production,rolled water-proof material production
4. asphalt heating, non-woven hot-rolled machine
5. fiber, glass hot press machine, reactor
6. mould, drying room , oven, and other heating industries.
The primary circulating pump provides the flow in the system to take the heat from the electric heater and transfer it to the users.
Electric Thermal Oil Heater can reach 320° C(600° F),Hot oil system are custom designed for many process applications such as Roller, Presses, Mold, Jacketed Vessel, Exchanger, Mixers, etc.
Hot oil system series thermal fluid system is the most compact temperature control system.

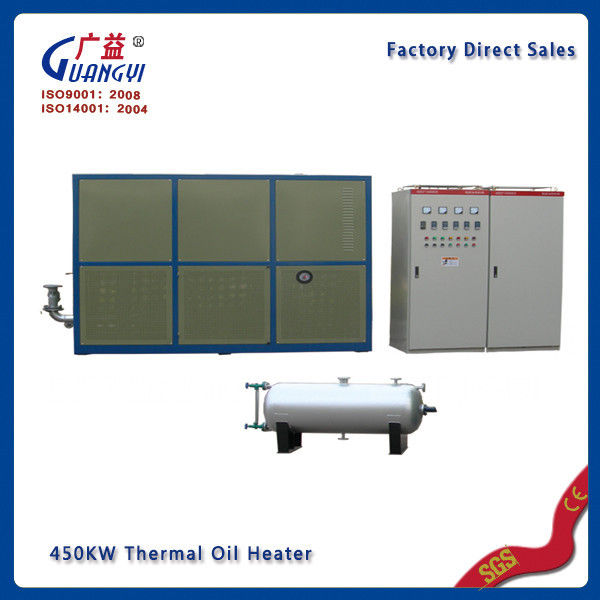

The whole system includes an electric heater, centrifugal pump, expansion tank, control center, strainer, stop valves, platinum resistance thermometer sensor, pressure gauge with electric contact,alumina silicate fibre insulation and connecting piping mounted on a welded steel base.
3. The circuit diagram of thermal oil boiler heating plywood
The features of thermal oil boiler heating plywood
1. High-quality heat source
2. Energy saving and low operating costs
3. Low Equipment Investment
4. Electric heating
5. Small scale industries
6. Heating element
4. Thermal oil boiler heating plywood parameters table
Note:Due to many types of Heater system with heat-transfer oilr,do not list here, the above data only for reference , specifications of production according to customer requirements.
5. Thermal oil boiler heating plywood specifications
Mold | GYD electric thermal oil heater |
Heating style | Electric |
Voltage | Customizable |
Power | 3-3000kw |
Construction | All welded construction |
Heating mdium | Thermal oil or water or other fluid |
Thermal efficiency | 95% |
Pump | Horizontal centrifugal pump |
Pressure |
Low-pressure (<0.5Mpa) |
Temperature control | PID Temperature controller (FUJI Electric PXR5/9) |
Control on heater circuits | SSR (Solid State Relay) |
Environmental influence | No pollution |
Accuracy of temperature control | ±1℃ |
Temperature range | Maxinum 400 ℃ |
Auxiliary equipment | No |
Explosion-proof | Yes |
Useful life | 8-10 years |
Operation | full automatic control |
Test | Pressure test and functional test |
Certification | CE, ISO9001, ISO14001, SGS and so on |
It can be applied in the following areas: hightemperature shaping, plate heating, rubber,drying, dyeing and printing, chemical industry, plywood production, rolled waterproof material production, asphalt heating, nonwoven horolled machine, fiber, glass hot press machine, reactor, mould, drying room, oven, and other heating industries.
When you order, pls supply us the following data ( standard voltage 380V)
1. Usage environment &what is used for heating?
2. The temperature and power?
Payment:
We accept Payment LC, T/T
Price terms : FOB
Shippment:
By sea ---we have good forwarders ,super service & price ! Especially ,it is free to ship by sea sometimes!
Other services:
Our productions can be able to customize . You can send an Email to us with the dimensions of the parts and the name of polymer attached to the parts. Our engineers will develop the most appropriate Electric Thermal Oil Heater for you!
