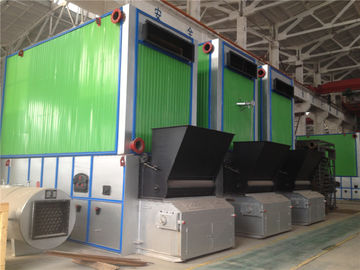

chain grate thermal oil boiler
1.horizontal chain grate coal-fired thermal oil boiler characteristics
1. Rolling type grate: Burning coal in rolling mode, with high burnout rate, thoroughly treated side-sealed air, suitable to burn II III soft coal and coal gangue.
2. Adoption of automatic temperature control function is made to achieve stable heating and precise temperature adjustment, which may meet different requirements
3. It adopts perfect running control and safety monitoring device with safety, reliability and easy operation.
4. Fast packaged or assembled for shipment with easy transportation, short installation period, and fast return of Investment.
5. The boiler features heat preservation performance with high-efficiency heat preservation material and state-of-the-art construction technology, lower radiating loss of boiler wall.
6. Fast temperature rise, high thermal efficiency, with overload capacity at a certain degree to ensure output of boiler.
7. No black smoke escapes to help achievement of environmental protection
8. Outstanding energy-saving effect, saving energy by 10-15% compared with similar products, return of investment for the equipment in the whole boiler room may be attained by capital of saved energy for one year operation.
2. Boiler advantage:
1.Safety: with water level, leakage steam, steam pressure control. Make sure boiler working safety.
2.Product quality ensured by: Strength calculation report,hydraulic test, X-ray, non-destructive test.
3.Efficient: well insulation and excellent structure.
4. Spirally corrugated tube increase the strength and also meets the needs of heat expansion of each parts.
3. Our Main Product scope:
1. WNS series Horizontal oil/gas fired boilers (0.5-30T/H, 0.7-14MW)
2. SZS series Horizontal Oil/gas fired boiler (4- 35T/H )
3. LHS series Vertical Oil/gas fired boiler (0.1-2 T/H, 0.06-0.7MW )
4. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)
5. SZL series water tube biomass boilers (4-35T/H, 1.4-29MW)
6. SHX boiler boiler ( 10--35 T/H)
7. CFB Circulating Fluidized Bed boiler ( 35T--130 T )
4. Factory assurance:
1.One year parts warranty
2.Spare parts available at ex-factory price
3.Different voltage available
4.100% tested before delivery
5.Engineer on-site instruction of installation and commissioning available.
5.After-sale services:
1.Assist clients to prepare for the first construction, and also can arrange engineer on-siteinstruction of installation and commissioning
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
6. Boiler Aplication:
Steam boiler can be used for product manufacturing process intextile factory, printing and dying, papermaking, rubber industrial , plastic industrial , chemical, pharmaceutical, etc.; and Hot water boiler for heating room, bath, air conditional, and daily life water in thefactories, departments, hotels, schools, restaurants, services industries etc.
7.Boiler technical data:
YLW Type of Horizontal Chain Grate Solid Fuel Thermal oil Boiler | ||||||||||
Model | YLW-1900MA-160 | YLW-3000MA-250 | YLW-4000MA-350 | YLW-6000MA-500 | YLW-7000MA-600 | YLW-8000MA-700 | YLW-10000MA-900 | YLW-1200MA-1000 | YLW-14000MA-1200 | |
Rating power | KW | 1900 | 3000 | 4000 | 6000 | 7000 | 8000 | 10000 | 12000 | 14000 |
×104 kcal/h | 160 | 250 | 350 | 500 | 600 | 700 | 900 | 1000 | 1200 | |
rated thermal efficiency | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | ≥79 | |
Rated working pressure Mpa | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Max.working temperature C | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | 320 | |
Thermal oil capacity M3 | 2.8 | 4.85 | 5.8 | 7.9 | 8.8 | 9.8 | 14.8 | 15.6 | 16.9 | |
Circulating oil Capacity m3/h | 165 | 225 | 280 | 340 | 400 | 400 | 600 | 680 | 800 | |
Main valve size | 150 | 150 | 200 | 250 | 250 | 250 | 325 | 350 | 350 | |
Whole system power | 75 | 85 | 130 | 180 | 205 | 205 | 280 | 310 | 315 | |
Design fuel | AI , AII , AIII soft coal | |||||||||
Weight kg | 21200 | 25000 | 32000 | 45000 | 64615 | 66424 | 87634 | 98994 | 128898 | |
8.Company Introduction:
Spirit: Supply Reliable & high efficient heating system.
1, More than 600 sets of boilers (5000 t/h) can be produced by us per year. Class A boiler manufacturer. Class A1, A2 pressure vessel manufacturer.
2, Each boiler system parts is from first class brand all over the world or China.
3, Strict quality control system. From the material, welding, to finished boiler shipment. From project establishment, drawing design, to final audit.
4, We are the stable and long term supplier of many Top 500 Groups all over the world. Such as PetroChina, Sinopec, Nestle,Mercedes-Benz, Coca cola, etc,.
9. Pictures:
