110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine / equipment

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment
110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment

Large Image :  110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine / equipment

Product Details:
Place of Origin: wuxi, china
Brand Name: DONGYANG
Model Number: YGJ Φ10000×50mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negociate
Packaging Details: No packaging
Delivery Time: 120days
Payment Terms: TT,LC,FOB,CIF
Supply Ability: Negociate
Detailed Product Description
High Light:

dish end forming machine

,

dished and flanged ends

Quick Detail:



Name Other Name Brand Name
Pressing machine

Drum press machine

Spinning machine

Feature

Leading quality, unique design, good handling, cost-effective.

Can be customized according to customer's requirements.

Capacity

Can make Φ10000×50mm dished end.

Pressure:800T

Main cylinder Max. working pressure :20MPa



Advantages

With this pressing machine,the spinned dished end have smooth surface,small round mark, good roundness, high productivity



Other model can be customized according to customer's demands





Extensive applications of dished end:

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 0

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 1

Dished end is a major part which on the end cap of pressure vessels,such us storage tanks, heat exchangers, towers, reaction kettles, boilers and separation equipment. So our machine is quite wildly uesd in these fields.




Specifications



No Name Parameter
1

Pressure

800T
2

Distance between main housings

11000
3

Main cylinder Max. working pressure

20Mpa
4

Main cylinder working speed

Going down: V240-260mm/s,

Press: V12-20mm/s

Returning: V170-220 mm/s

5

Main motor

110KW





Additional requirements



1, Pressing machine cylinder piston rod adopts chilled cast iron, cylinder adopts 35 # forgings, strokes ensure production of Φ8500mm ellipsoidal dish end.

2, The pressing machine frame stiffness should be sufficient, warranty for 10 years. When the upper mold pressure reaches to 20Mpa, Center deflection degree of upper and lower beam should not exceed 3.7mm (achieve precision pressure level, the deformation f = Δ / L = 1 / 3000). The cylinder piston rod should be chrome painted and polished, machine load should be not less than 26 tons.

3, The seller provides 6 sets pressing tooling, R1300,R1600,R1900,R2500,R3200,R4000 material QT600-3, marked with stamp.

4, With automatic and manual operation functions, pressure could display on gauge and adjustable





Dished end making process and other suggested machines:



1. CNC Gantry Flame and Plasma Cutting Machine

We use this machine to cut the plate. If small dish end, we can cut a whole circle directly, if big dish end, in order to save material, we usually cut two pieces, then weld them into whole circle.



2. Grinder

After welding, we use this small trolley to grind the welding joint and get flat material.

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 2

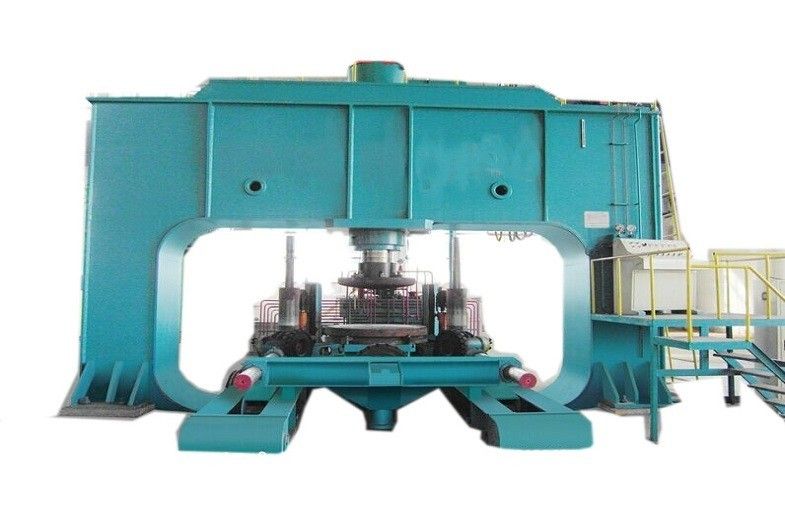

3. YGJ Φ10000×50mm Pressing Machine with toolings

Flat material is loaded into pressing machine. This machine’s piston rod of the master cylinder moves up and down to drive the upper tool to press the raw plate to become the required concave shape.

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 3



4. FBJ Φ 10000×50mm Flanging machine wth toolings

  we load this concave shape plate into next machine: dish end flanging or edging machine. The clamping frame functions as the fix and free rotation of dish ends. Pressure wheels make movements based on certain round arc and put force on the dish end blank to make it rotate constantly to form dish ends and make thickness reduction minimum to achieve the ideal state.

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 4



5. Edge trimmer

It is used to cut dished end uneven edge.

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 5



6. The final dished end

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 6



Factory name: Wuxi Dongyang Spinning Equipment Co.,Ltd

110KW Φ 10000 × 50mm Pressure Vessel Dished End Machine  / equipment 7



Contact Details
China Concrete Autoclave Online Market

Contact Person: tt

Send your inquiry directly to us (0 / 3000)
