Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton

Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton
Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton

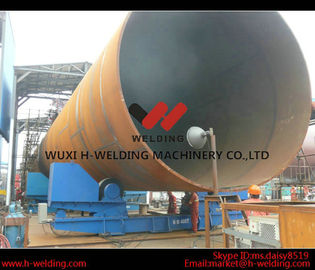

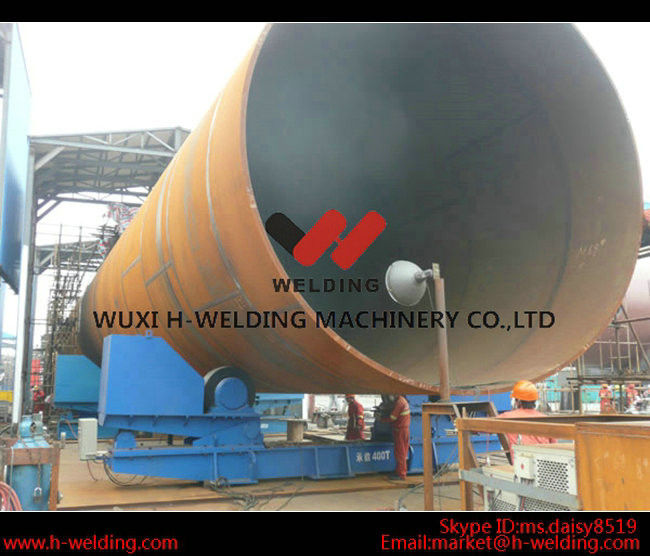

Large Image :  Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton

Product Details:
Place of Origin: China
Brand Name: H-WELDING
Certification: CE
Model Number: XHGK10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: negotiation
Packaging Details: Mainframe naked in container, electrical control box in plywood cases (Non fumigation) then in container.
Delivery Time: 15 working days after received your payment
Payment Terms: 30% T/T as advance payment when sign the contract, 70% T/T as balance payment before delivery or 100% irrevocable LC at sight
Supply Ability: 30sets per month
Detailed Product Description
Product Name: Conventional 10Ton Welding Rotators Application: Longitudinal Seam Welding
Loading Weight: 10000kg Roller Material: Metallic Roller With Rubber Roller
Speed Control: VFD Linkage Control: Available
Standard: CE Special Design: Available
High Light:

welding rotator

,

pipe welding equipment

Conventional 10Ton Welding Rotators In Boiler industry with PU Roller HGK10



Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton 0



Specifications:



Model

XHGK-2

XHGK-5

XHGK-10

XHGK-20

XHGK-40

XHGK-60

Max. loading (T)

2

5

10

20

40

60

Vessel diameter (mm)

150-2000

250-2300

320-2800

500-3500

600-4200

750-4500

PU roller dia.&width(mm)

200*80

250*100

300*120

350*150

400*180

45*180*2

Metal roller dia.&width(mm)

Option

Linear speed mm/min



100-1000



Speed control way



VFD (stepless variable frequency speed control)

Motor power (KW)

2*0.18

2*0.37

2*0.55

2*1.1

2*1.5

2*2.2

Roller center distance adjust way

Bolt-adjustable

One set inc.

One power and one idle





Note: For 2-100T roller is steel and rubber combination roller.For 100-500T roller is made of whole steel roller or imported rubber.



Description:



1. This series of roller-bed consists of driving roller, idler roller and electric system etc.

2. By proper adjustment, it can make work-piece at optimum welding position, 3.Attaining purpose of reducing labor intensity, improving, welding speed, guaranteeing welding quality.



Applications:



1. Chemical & fuel storage tank fabrication

2. Any heavy cylindrical job

3. Used to weld,polish and assemble the cylinder-shells,and to line the shells with rubber.



Competitive Advantage:



1.The upper surface of pedestal is fine machined, both side of which has adjusting bolt holes.

2.It is the frame structure, scientific and reliable design.

3.Every motion part for equipment has the full lubricating system.

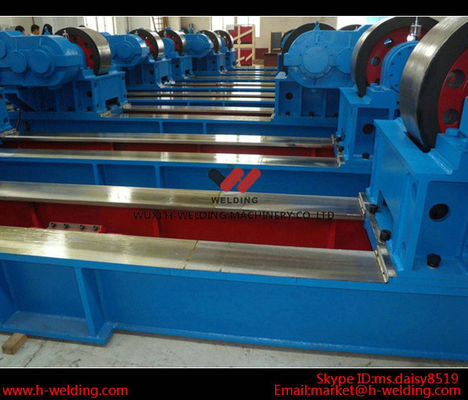

Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton 1

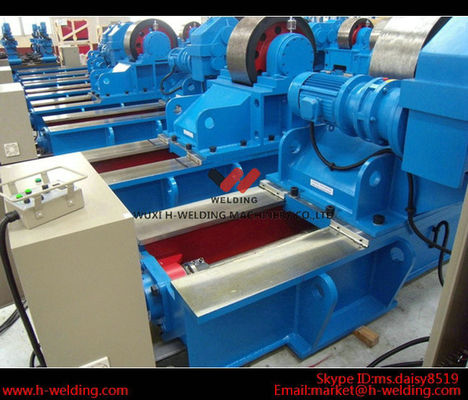

Pressure Vessel Automatic Conventional Pipe Welding Rotator with PU Roller 10 Ton 2
