Product Details:
|
| High Light: | welding rotator,pipe turning rolls |
||
|---|---|---|---|

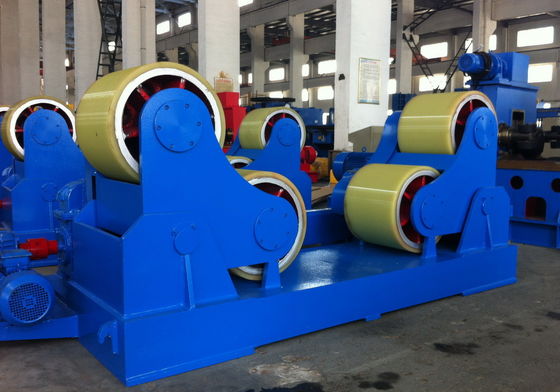

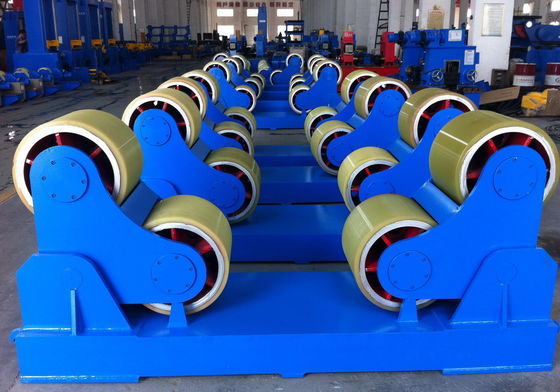

60 Tons Self-aligned Pressure Vessel Tank Welding Turning Rolls With Full Pu Wheels
Quick Detail:
|
Name |
Products nickname |
Brand Name |
Control |
|
Self-Aligned Turning roller beds |
Tank roller beds,vessel rotator,tank turning rolls Welding rotator |
Pyramid |
VFD. ABB inverter. Schneider |
|
Loading Capacity |
5tons-1200tons |
Certificate |
CE,ISO |
Description:
The HGZ series welding rotator is absorbing advantages of similar products at home and abroad,and designed and manufactured by us according to the operation requirements of several pressure vessel factories,and accord with mechanical standard..It has advantages of advanced technology,reliable quality and simple operation.
This is self-aligned welding rotator which is suitable for different jobs in the range,and it has advantages of step less speed adjust,low noise transmission and stable turning under the welding parameter in the range.
Applications:
Widely used in pressure vessel, boiler, chemical equipments, oil and gas, storage tank, water tank, water pipe, shipyard, wind energy.
Specifications:
Technical datas:
|
Model |
HGZ5 |
HGZ10 |
HGZ20 |
HGZ40 |
HGZ60 |
HGZ80 |
HGZ100 |
HGZ150 |
HGZ200 |
HGZ500 |
||
|
Maximum loading T |
5 |
10 |
20 |
40 |
60 |
80 |
100 |
150 |
200 |
500 |
||
|
Suit diameter range |
250 2300 |
320 2800 |
450 3500 |
600 4200 |
750 4800 |
850 5000 |
1000 5500 |
1200 6500 |
1500 8000 |
1800 8000 |
||
|
Roller size |
Rubber roller mm |
D1 |
250 |
300 |
350 |
400 |
450 |
500 |
500 |
550 |
550 |
600 |
|
W3 |
100 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
140 |
||
|
Metallic roller mm |
D2 |
244 |
294 |
344 |
394 |
444 |
494 |
494 |
540 |
540 |
590 |
|
|
W4 |
20 |
25 |
30 |
40 |
50 |
60 |
70 |
90 |
100 |
120 |
||
|
Linear speed m/h |
6-60 |
|||||||||||
|
Speed control |
VFD |
|
||||||||||
|
Motor power kW |
0.75 |
1.1 |
1.5 |
3 |
4 |
4 |
5.5 |
5.5 |
7.5 |
|
||
|
Machine weight kg |
1020 |
1500 |
2220 |
3000 |
4200 |
5500 |
7730 |
11000 |
14000 |
16000 |
||
Competitive Advantage:
Advanced technology,reliable quality and simple operation, step less speed adjust,low noise transmission and stable turning under the welding parameter in the range.
NOTE: The loading capacity means one power + one idler’s total loading capacity. All the steel frame will be shot blasted by SA2.5 sand before Zinc painting.
Option
|
Travel car (manual bogie) |
YES |
|
Travel car (motorized bogie) |
YES |
|
Foot switch |
YES |
|
Synchronization |
YES |
|
Anti-explosion motor, control panel |
YES |
The above models are standard, none-standard or larger capacities are available, price on application.
