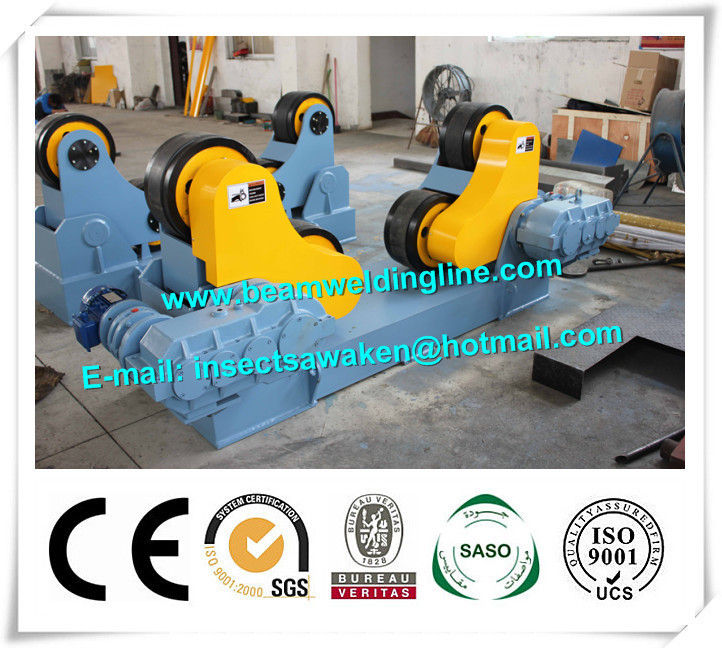

Durable Pressure Vessel Pipe Welding Rotator / Welding Turning Roll
1. Simple introduction
● Robust design with durable rollers.
● Gritblasted steel-work with polyurethane finished coating to endure the abrasive environment of offshore and marine industries.
● Special formulated high-load polyurethane tire design for high wear resistance.
● Cast steel gearbox with double worm gear arrangement for smooth operation and minimum backlash.
● Solid state inverter for precise speed control.
● Motorised and Idler Rail Bogie variants.
● Maximum loading capacity 2.5-50 tons/section.
2. Self aligning welding rotator specification
|
Model |
SWR5 |
SWR10 |
SWR20 |
SWR40 |
SWR60 |
SWR80 |
SWR100 |
|
Unit Loading (T) |
5 |
10 |
20 |
40 |
60 |
80 |
100 |
|
Minimum suitable size (mm) |
φ250 |
φ320 |
φ500 |
φ600 |
φ750 |
φ850 |
φ1000 |
|
Maximum suitable size (mm) |
φ2300 |
φ2800 |
φ3500 |
φ4200 |
φ4800 |
φ5000 |
φ5500 |
|
Rubber wheel diameter (mm) |
φ250 |
300 |
350 |
400 |
450 |
500 |
500 |
|
Rubber wheel width (mm) |
100 |
120 |
120 |
120 |
120 |
120 |
120 |
|
Metallic wheel diameter (mm) |
φ240 |
φ290 |
φ340 |
φ390 |
φ440 |
φ490 |
φ490 |
|
Metallic wheel width (mm) |
20 |
25 |
30 |
40 |
50 |
60 |
70 |
|
Linear speed (m/h) |
6-60 |
||||||
|
Motor power (kw) |
0.75 |
1.1 |
1.5 |
3 |
4 |
4 |
5.5 |
|
Speed adjusting way |
VFD |
||||||
 |
|
Reducer and motor, we also provide spare parts to customers.
|
