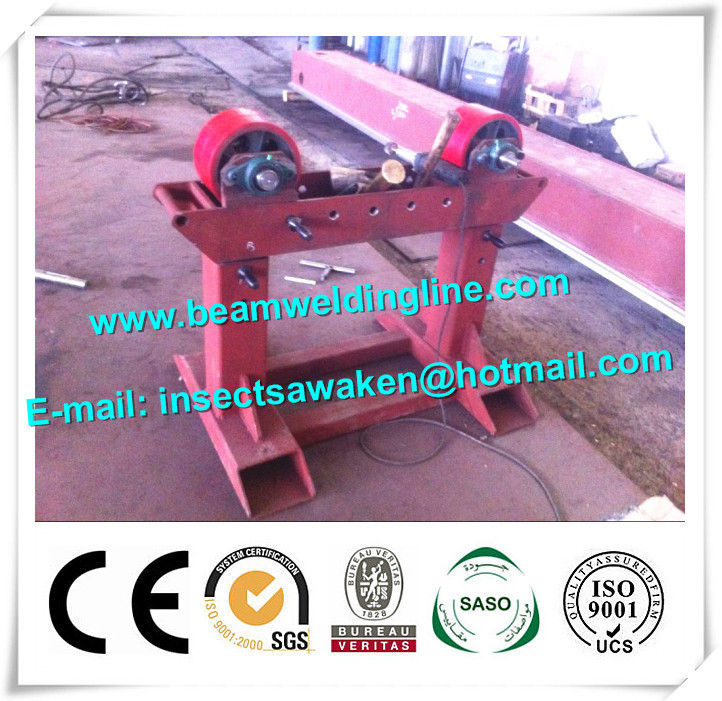

Conventional Pipe Welding Rotator , Welding Column Boom Pipe Welding Turning Rollers
1. Competitive advantage
● American style and production standard
● All the bolt using 12.9 grade Bolt , not using 8.4 grade. Making the machine more stronger.
● 20 % overweight design , could making the rotator focus more.
● Double row wheels ,not only making the wheels stable, but also artifacts to increase friction.
● All the parts using well-known brands in China or other countries . Quality is more reliable .
● The base of rotator welded by plates, with high strength, no deformation after long time using.
2. Technical parameter
● Loading capacity: driver rotator is 8,000 lbs (4 tons), idler rotator is 8,000 lbs (4 tons)
● Pipe diameter range: 2"-48"
● Tractive effort/ torque: single drive is 2,400 lbs, tractive effort is 12,000 in-lbs output torque
● Foot rrint: 41½" * 36" * 33½" – 45½ "
● Height range: adjustable in 4" increments
● Equipment mass: driver rotator is 375 lbs, idler rotator is 225 lbs
● Power requirements: 110 V, 1Ph, 15A input
● Operation speed range: 5-52 in/min
● Controls: variable speed, forward/ reverse DC drive, optional foot or hand switches
● Wheels: urethane wheels to protect and grip work-piece
● Complete set: driver, idler, and foot switch
● Applications: ideal for supporting and turning heavy wall pipe up to 48" diameter
 |
|
