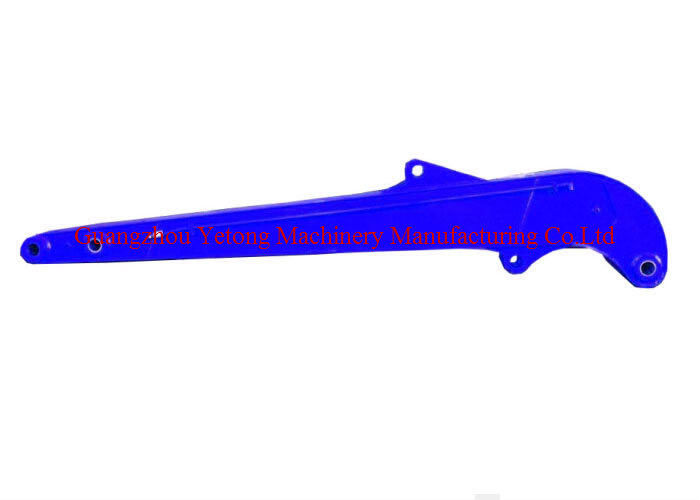

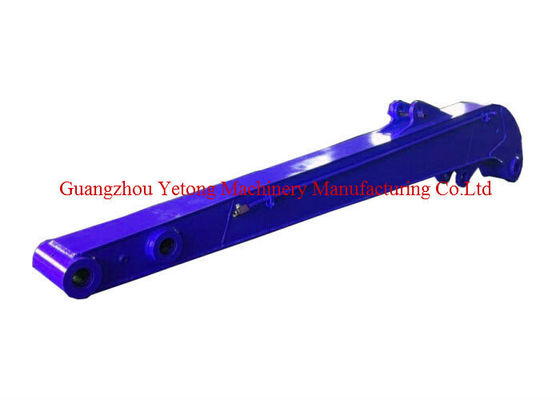

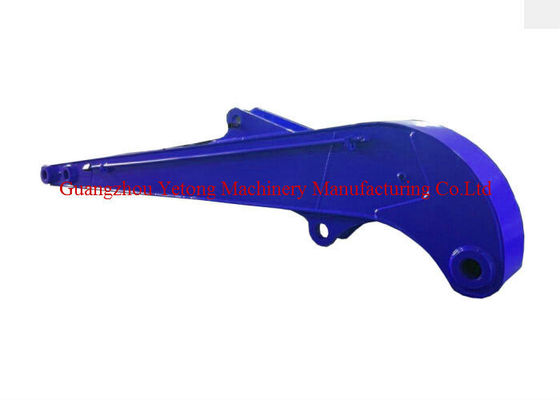

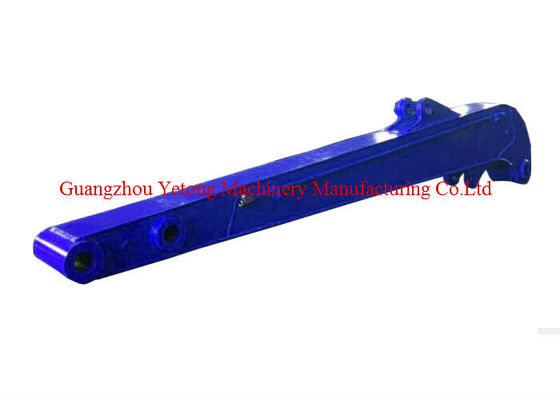

360 Degree Rotation Pile Driving Equipment Economical For Foundation Construction
Description:
1. excavator pile driving arm through computer stress analysis, material selection, process to develop, design and production;
2. excavator pile driving arm installed inside the bumper to withstand tension loads, ensure the structural strength of the arm, performance and quality, and extend the life of the arm.
3. hydraulic excavator pile driving arm all through acid phosphate treatment to ensure the long arm hydraulic pipe cleaner to effectively prevent rust residue within the hydraulic pipe, welding slag into the excavator hydraulic pumps and cylinders.
4. excavator pile driving arm surface after grinding, sandblasting, shot blasting, scraping putty, spray original paint color to ensure the piling arm outer surface appearance.
Excavator pile driving arm is a front-end excavator working device in order to expand a scope of work, according to the conditions of the special requirements of the design and manufacture of its connecting parts must strictly conform to the original connection size excavator mounted on equipment to use. It is because of the needs of modern engineering and construction, the excavator pile driving arm is more and more in people's eyes, and other foundations such as pit operations, aerial buildings demolished or river clean-up in areas such as construction and maintenance, must be used add to quick and efficient completion of the long arm of the indicators project requirements.
Introduction:
1. driving and extracting sheet pile, H-beam, tube and steel plate
2. higher economical and maneuverability than that of crane attached pile driving
3. excellent workability and double safety
4. 360 degree rotation for easy operation and 90 degree tilting clamp for safety of worker.
5. easy installation using breaker hydraulic line of excavator and electric cable device
6. accurate control tilting operation system
Parameter:
Model |
|
|
|
|
|
Total length (mm) | 13000 | 14000 | 15000 | 16000 | 18000 |
Weight(kg) | 3500 | 4000 | 4500 | 5000 | 5500 |
Height(mm) | 11000 | 12000 | 13000 | 14000 | 16000 |
Total height of loading (mm) | 2950 | 3210 | 3210 | 3420 | 3420 |
The characteristics and advantages:
1. No need to change the using capability of excavator
2. Made of high strength plate material
3. Improve the piling range efficiently
4. Design height is 11-18 meters
5. Can deploy different models of pile driver.
The application of pile driving arm:
Mainly used in the base part of the railway, highway bridges, buildings and other large buildings or high-rise building, foundation treatment forever.
We have the excavator pile driving arm used for follow types:
Hitachi: EX60; EX200; EX220; EX230; EX240; EX300; EX330; EX360; EX450; EX850; EX870
Komatsu: PC60; PC200; PC220; PC230; PC300; PC360; PC400; PC600; PC700; PC800; PC450
Volvo: EC210; EC240; EC290; EC360; EC460; EC700
Hyundai: R55; R130; R190; R200; R210; R220; R225; R225-7; R290; R300; R330; R335; R370; R450; R455
Daewoo: DH220; DH258; DH280; DH300; DH370; DH420; DH500
Shinko: SK200; SK220; SK230; SK250; SK300; SK330; SK450; SK460
Kato: HD Takeuchi bucket
Caterpillar: 320 five teeth digging bucket; 320 seven teeth digging earthwork bucket; 320 digging rock bucket; 320 six teeth; 325; 330; 385
Sumitomo: SH200; SH280; SH300; SH330
