Remove tanks dirty by corrosive liquid rolling use welding rotator with prevent-water motor

Large Image : Remove tanks dirty by corrosive liquid rolling use welding rotator with prevent-water motor

Product Details:

Place of Origin:	China
Brand Name:	TMP
Certification:	CE/ISO
Model Number:	1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Bubble papers
Delivery Time:	30 Days
Payment Terms:	T/T
Supply Ability:	10

Contact Now

Detailed Product Description

High Light:

Cleaning vessels

cleaning tanks

clean cylinder

Remove tanks dirty by corrosive liquid with prevent-water motor welding rotator

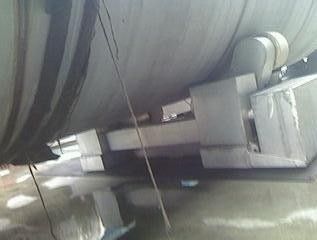

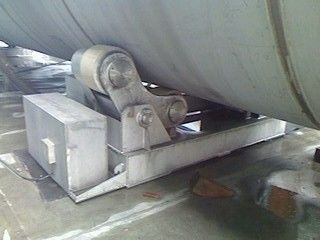

We often use corrosive liquid clean the dirty vessels .The tanks may be use again as a new. This type rotator is special for cleaning dirty tanks . The wheels and the bed frame often produced by stainless material , the drive motor may adopt hydraulic or normal prevent-water. If we use the hydraulic motor , we will use pump station.

SAR series Self alignment turning roller is suitable for welding of circular cylinder, the work piece placed on the wheel rack, the clamp frame themselves open to accommodate the size of the cylinder. We may save many times .Usually SAR welding rotators adopt one (SAR5---SAR100 type ) or two motors( up SAR150 ). The motor adopt frequency conversion.

Our company in accordance with domestic and foreign similar products manufacturing experience, combined with the reality, for the first time adopted the English logo classification: SAR5-500.

Technical Features

1,Wire control type :Remote control box with line 10M length

2,Wireless control type:Remote control box without line (control distance 50 M)

3, Usually rubber wheel add two pieces of metal wheels

4, PU wheels will be special produced.

5, Speed adjust by VFD

6, VFD ,Motor ,Main electric units :Germany Siemens or France Schneider

CE or UL

Specification:

Type	Max Loading Ton	Vessel Diameter Range mm	Wheel Size mm		Motor Power KW	Linear Speed M/ h
Type	Max Loading Ton	Vessel Diameter Range mm	Diameter	Width	Motor Power KW	Linear Speed M/ h
SAR5	5	250---2300	250/240	100+20*2	0.75	6---60
SAR10	10	320---2800	300/290	120+25*2	1.1
SAR20	20	450---3500	350/340	120+30*2	1.5
SAR40	40	600---4200	400/390	120+40*2	3
SAR60	60	750---4800	450/440	120+50*2	4
SAR80	80	850---5000	500/490	120+60*2	4
SAR100	100	1000---5500	500/490	120+70*2	5.5
SAR150	150	1200---6500	600	280	3 KW*2
SAR200	200	1500---8000	700	300	4 KW*2
SAR500	500	1800---8000	800	300	7.5 KW*2
Remote control box(by hand) line length: more 8m The speed adjustment way: frequency conversion (VFD) SAR5-100 roller: rubber wheel add two pieces of metal wheels SAR150-500 roller : metal wheels SAR5-100: one motor SAR150-500: two motors Another : may adopt PU wheels Power moving ,Idler moving If you want to order special type, You may tell us about your work unit and then we design for you.

Mechanical Structure

1) Power roller frame is consists of 2 drive rollers ,1 pedestal ,reducer,motor etc.

Power roller are driven by one motor and three reducers . Working principle of the roller: Electric power--- Control box---VFD---Y series motor---single input worm reducer---two worm reducers(left and right)---gear reducer---roller rotating

The gear reducer is made by our company, which have low noise,big torque .

2) The Idler roller frame is consists of 2 idlers and 1 pedestal.

Option:

1. Polyurethane wheelor Rubber wheel or steel wheel ,

2. Anti-creep function,

3. Hydraulic lifting for fit up pipe,

4. Hydraulic tilting function ,

5. Automatic traveling or Manual traveling on the rail,

6. Customization.
