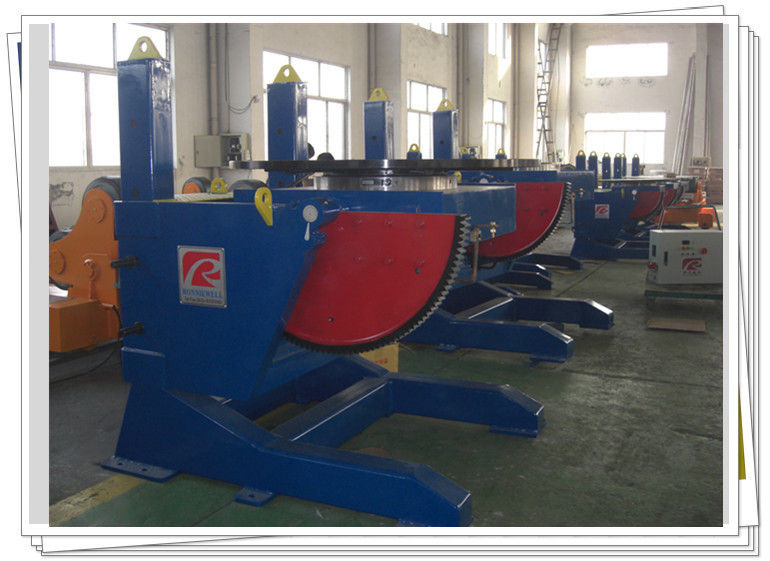

Tilting Rotary Rotary Welding Positioners 1200kg Height Adjustable With Slewing Bearing

Tilting Pipe Rotary Welding Positioners Adjustable With Slewing Bearing

Brief introduction of height adjustable rotary welding positioner:

Via work table tilting & unlimit free rotating at each tilt angle,

to position the welding job on a suitable working position.

Its work table height is adjustable, welding job size range is larger than normal.

Feature of rotary welding positioner :
1. Rotary welding positioner is mainly composed of worktable rotating unit, tilting unit and electric control system .
2. It has powered tilting and rotating, making the work-piece at ideal position.
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
4. Rotate unit is driven by motor. It has a precise speed-adjusting and reliable position.
5. Remote control box can realize the remote operation of work bench, also can connect with operating machines to realize linkage operation.
6. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center .
7. Used to pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure .

Technical parameters:

Remark:
1.You can choose Fixed type or Elevating type .
2.rotary welding positionercan tilting from 0° to 120°, rotation 360° via VFD control.
3. Machine power is arranged as per your requirement; .
4.Controlled is remote-control box, optional is foot switch;
5.Beacause of the offset from center and gravity center ,for the longer and more offset from gravity center workpiece, large model should be chosen. We would be pleasure to make solution for you if needed.


Rotary welding positioner description:

• Rotary welding positioner is mainly composed of worktable revolving unit and tilting unit.
• With worktable lifting, tilting and rotating, it is mainly used to place the workpiece in the best position for welding and assembling.
• It can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc.
• It has the advantages of compact volume, good appearance, light weight and easy operation.
• The rotary welding positionerseries can divide into side tilting type , head to tail rotary type, headstock & tailstock lifting rotary type, headstock & tailstock tilting type, double rotary type positioner.
• The positioner can work with welding column & boom to realize the automatic special purpose welding center.
• As robot peripherals, it can also work with robot to realize automatic welding .
• We can design and customize the positioners according the customers workpiece and welding procedure.

Rotary welding positioner CE certification:

Rotary welding positioner CE certification.pdf
