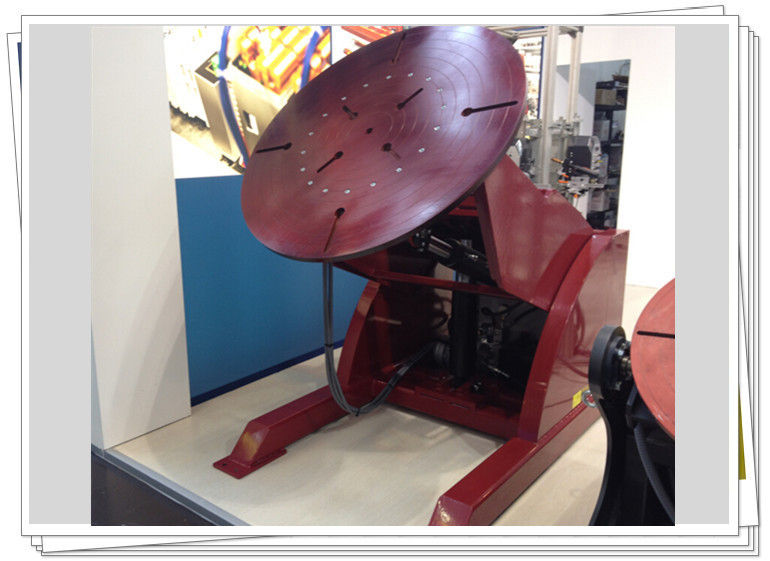

Hydraulic Elevating Welding Positioner Automatic Tilting For Irregular Job

Hydraulic Elevating Welding Positioner Automatic Tilting For Irregular Job
Hydraulic Elevating Welding Positioner Automatic Tilting For Irregular Job Hydraulic Elevating Welding Positioner Automatic Tilting For Irregular Job

Large Image :  Hydraulic Elevating Welding Positioner Automatic Tilting For Irregular Job

Product Details:
Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA,SGS
Model Number: ZHBJ06
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Confirm with us
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 45set/month
Detailed Product Description
Application: Postion Job To Work Position Work Mode: Table Rotate & Tilt
Feature: Work Table Height Adjustable Driving: Hydraulic Power
Loading Capacity: 600kg Table Dia.: 1000mm
High Light:

pipe welding positioner

,

rotary welding positioner

Hydraulic Elevating Welding Positioner Chuck Automatic Tilting





Brief introduction:

Using hydraulic power to adjust distance between work table & floor. Table rotating adopt VFD control.





Feature of hydraulic elevating welding rotator:

  • hydraulic elevating welding rotator is mainly composed of worktable rotating unit, tilting unit, electric control system and hydraulic system.
  • Work table rotating is motorized. It has a precise speed-adjusting and reliable position.Tilting & table height adjustment are hydraulic driven.
  • Rotation is controlled by step-less frequency conversion to achieve a best welding speed .
  • Adopts remote control box  to realize the remote operation of work table, it also can connect with operating machines to realize linkage operation.
  • Used to pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure .




Technical parameter:

Model

Rated loading

(KG)

Rotary speed

(rpm)

Overturning

speed

 (rpm)

Overturning

 angle

(degree)

Size of

work table
(mm)

ZHBJ03 300 0.15~1.5 by mnaual 0~90 600
ZHBJ06 600 0.11~1.1 1.1 0~90 1000
ZHBJ30 3000 0.05~0.5 0.23 0~135 1400
ZHBJ50 5000 0.05~0.5 0.2 0~135 1500
ZHBJ100 10000 0.05~0.5 0.2 0~135 2000



Model Motor power (kW)

Way of

setting

Max. Eccentric

distance (mm)

Max. Distance

of gravity center

(mm)

Max. Turning

diameter (mm)

Rotary Overturning
ZHBJ03 0.18 /

Variable

frequency

drive

100 150 -
ZHBJ06 0.55 0.75 150 200 1500
ZHBJ30 1.5 2.2 200 300 2100
ZHBJ50 2.2 3 200 300 2500
ZHBJ100 3 4 200 400 3240

Remark:
1.Standard with remote-control box, foot pedal is option;
2.Beacause of the offset from center and gravity center ,for the longer and more offset from gravity center workpiece, large model should be chosen. We would be pleasure to make solution for you if needed.
3.For special requirements ,customized service is available.





Competitive Advantage:

  • Variable or single speed table rotation through 360°
  • Square or round table as desired. with T slots and concentric rings to facilitate fast and accurate alignment and clamping.
  • Power Operated Table tilting mechanism through 135°, including limit Switches to prevent over-run.
  • Centre spindle carried in sealed pre-loaded Timken bearings or, depending on capacity Large diameter crossroll bearing is provided.
  • Accurate machine cut steel gears.
  • Efficient built-in earthling. Totally enclosed electrical motors including electromagnetic breaks.
  • Pendant remote push button controls for all movements, together with speed potentiometer.





Hydraulic elevating welding rotator description:

  • With worktable lifting, tilting and rotating, it is mainly used to place the workpiece in the best position for welding and assembling.
  • It can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc.
  • The hydraulic elevating welding rotator series can divide into side tilting type , head to tail rotary type, headstock & tailstock lifting rotary type, headstock & tailstock tilting type, double rotary type positioner.
  • The positioner can work with welding column & boom to realize the automatic special purpose welding center.
  • As robot peripherals, it can also work with robot to realize automatic welding .
  • We can design and customize the positioners according the customers workpiece and welding procedure.





Product Name:
hydraulic elevating welding rotator,positioner welding,welding rotator,welding table,hydraulic elevating welding rotator,hydraulic elevating welding rotator,head to tail positioner,hydraulic elevating welding rotator
