| Usage: | Handle Job To Work Position | Work Mode: | Table Rotate & Overturn |
|---|---|---|---|
| Application: | Metal Job Weld & Assemble | Speed Control: | Variable Frequency Drive |
| Rated Loading: | 3000kg | Table Dia.: | 1400mm |
| Table T Slot: | 6 | Voltage: | As Per Required |
| High Light: | pipe welding positioner,rotary welding positioner |
||
Industry Elbow Welding Positioner Turntable With VFD Speed Control
Brief introduction:
Production capacity is from 100kg until 50ton, including customization service, satisfying special work piece requirement.
Feature of elbow welding positioner:
1. Elbow welding positioner is mainly composed of worktable rotating unit and tilting unit and electric control system .
2. By motorized tilting and rotating, elbow welding positioner could make the work-piece at ideal work position .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
4. Using remote control box to realize the remote operation of work table, also can connect with operating machines to realize linkage operation.
5. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center .
6. Application industry including pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure .
Technical parameters:
| Model |
Rated loading (KG) |
Rotary speed (rpm) |
Overturning speed (rpm) |
Overturning angle (degree) |
Size of work table |
| ZHBJ03 | 300 | 0.15~1.5 | by mnaual | 0~90 | 600 |
| ZHBJ06 | 600 | 0.11~1.1 | 1.1 | 0~90 | 1000 |
| ZHBJ30 | 3000 | 0.05~0.5 | 0.23 | 0~135 | 1400 |
| ZHBJ50 | 5000 | 0.05~0.5 | 0.2 | 0~135 | 1500 |
| ZHBJ100 | 10000 | 0.05~0.5 | 0.2 | 0~135 | 2000 |
| Model | Motor power (kW) |
Way of setting |
Max. Eccentric distance (mm) |
Max. Distance of gravity center (mm) |
Max. Turning diameter (mm) |
|
| Rotary | Overturning | |||||
| ZHBJ03 | 0.18 | / |
Variable frequency drive |
100 | 150 | - |
| ZHBJ06 | 0.55 | 0.75 | 150 | 200 | 1500 | |
| ZHBJ30 | 1.5 | 2.2 | 200 | 300 | 2100 | |
| ZHBJ50 | 2.2 | 3 | 200 | 300 | 2500 | |
| ZHBJ100 | 3 | 4 | 200 | 400 | 3240 | |
Remark:
Beacause of the offset from center and gravity center ,for the longer and more offset from gravity center workpiece, large model should be chosen. We would be pleasure to make solution for you if needed.

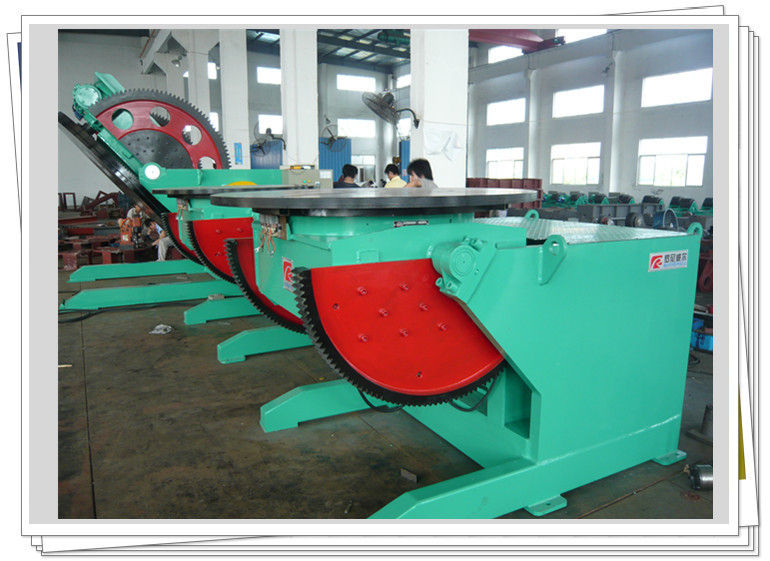

Elbow welding positioner description:
