tilting pipe welding positioner

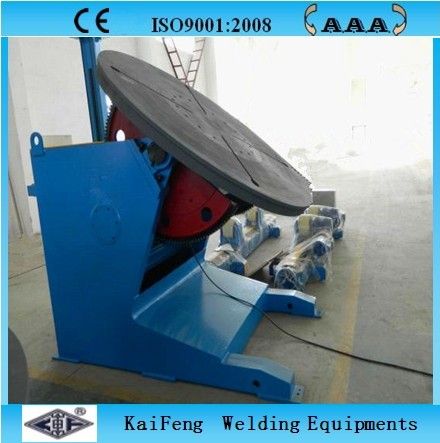

Large Image : tilting pipe welding positioner

Product Details:

Place of Origin:	WuxI
Brand Name:	Kaifeng
Certification:	CE,UL,AAA,ISO9001:2008
Model Number:	HBJ-12

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Packaging Details:	wooden case or as yor requirement
Delivery Time:	15days
Payment Terms:	L/C , T/T , D/A , D/P , Credit Card , Western Union , Money Order , Paypal , Others
Supply Ability:	depend

Contact Now

Detailed Product Description

High Light:

tilting pipe welding positioner

welding positioner

pipe welding positioner

More details for tilting pipe welding positioner:

1.welding positioner
It is mainly used for overturnig and switching some medium sized work pieces, such as shafts, discs cylinders to get the ideal welding position and speed. It is usually work with the equipment such as manipulator and welding machines to form the auto welding system. It is also can be used in manual welding assembling, polishing and crack-defection, etc.

2.Description
Finish machining processing stable: To avoil damage from welding splitter.
Take imported traducer control, the stability of the complet machine is good.
Equally distribute the position wire and t-stud: It is easy to clip, position and install work piece.
Multi-protection of machinery and electricity: This can ensure the safety of the user, the equipment can work reliably.

3.Excellent stability:
Convenient to installation and moving.
High quallity with reasonable price

Model	HBJ01	HBJ03	HBJ06	HBJ12	HBJ30	HBJ50	HBJ100	HBJ200	HBJ300	HBJ500
Max loading(t)	0.1	0.3	0.6	1.2	3	5	10	20	30	50
Revolve seppd(rpm)	0.4 4	0.1 1	0.09 0.9	0.05 0.5	0.05 0.5	0.05 0.5	0.05 0.5	0.04 0.4	0.03 0.3	0.02 0.2
Tilt speed	Manual	Manual/1	0.4	0.4	0.2	0.2	0.2	0.15	0.15	0.06
Tilt angle	90	90	90	90	135	135	135	135	-45-90	-45-90
Work-table dia.(mm)	400	600	1000	1200	1400	1500	2000	2000	2500	4000
Revolve power(kw)	0.18	0.18	0.25	0.75	1.1	1.5	3	5.5	5.5	11
Tilt power	Manua	0.18	0.37	0.75	2.2	3	4	11	15	18.5
Speed control	VFD
Max ec distance(mm)	100	150	150	200	200	200	200	200	200	200
Max gra. Distance(mm)	200	200	200	250	300	300	400	600	6000	800
Lifting stroke	/	/	800	1000	1000	1000	1000	1250	1250	1500
