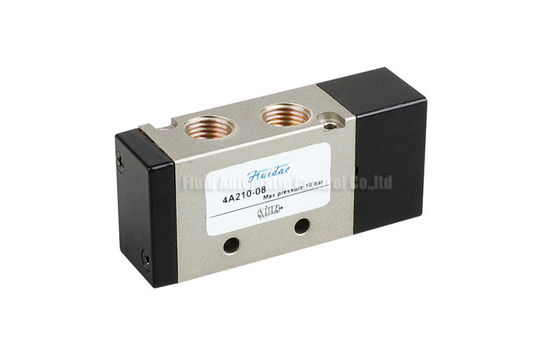

Airtac Type 4A210 Air Operated Pneumatic Control Valve M5~G1/2"
18mm,22mm,27mm,34mm body width Air Operated valve single acting double acting and spring return port size M5~G1/2 e.g 4A210-08 airtac equvalent
Quick Detail:
* 4A series Air Operated valve airtac interchange
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Air Operated,Double action and spring return for option
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
*Connecting thread M5~G1/2"
* Mature products,cost effectively
Applications:
4A Series air control valve is completely air operated Pneumatic control valve used as directional control equipment to change the direction of working medium to drive a executor component normally a cylinder to realize a linear motion cycle
Specifications:
|
ORDERING CODE |
||||
|
4A |
2 |
10 |
08 |
B |
|
Type |
Body Width |
Function Type |
Joint Port size |
Connecting type and Initial State |
|
4A: Two posistion Five Way Air Operated valve |
1:18mm |
10:Two Position Single Coil |
M5:M5X0.8 |
Blank:Pipe Joint type |
|
2:22mm |
20:Two Position Double Coil |
06:1/8" |
B:Namur Type |
|
|
3A:Two Position Three Way Air Operated valve |
3:27mm |
30C:Three Position Double Coil Center Closed type |
08:1/4" |
NC:Normally Closed type |
|
4:34mm |
30E:Three Position Double coil Center Exhausting type |
10:3/8" |
NO:Normally Open type |
|
|
30P:Three Position Double coil Center Pressuer Type |
15:1/2" |
|||
|
SPECIFICATION |
|||||||||||
|
Model no(18mm) |
4A110-M5 |
4A120-M5 |
4A130-M5 |
4A130E-M5 |
4A130P-M5 |
4A110-06 |
4A120-06 |
4A130C-06 |
4A130E-06 |
4A130P-06 |
|
|
Position And Way Numbers |
Two Position- Five Way |
Three Position-Five Way |
Two Position- Five Way |
Three Position-Five Way |
|||||||
|
Effective SectionVl VreV |
10mm²(CV=0.56) |
7mm²(CV=0.4) |
12mm²(CV=0.67) |
9mm²(CV=0.5) |
|||||||
|
Port Size |
Inlet,Outlet,Exhausting M5x0.8 |
Inlet,Outlet,Exhausting G1/8" |
|||||||||
|
Model no(22mm) |
4A210-06 |
4A220-06 |
4A230C-06 |
4A230E-06 |
4A230P-06 |
4A210-08 |
4A220-08 |
4A230C-08 |
4A230E-08 |
4A230P-08 |
|
Position And Way Numbers |
Two Position-Five Way |
Three Position-Five Way |
Two Position-Five Way |
Three Position-Five Way |
||||||
|
Effective SectionVl VreV |
14mm²(CV=0.78) |
12mm²(CV=0.67) |
16mm²(CV=0.89) |
12mm²(CV=0.67) |
||||||
|
Port Size |
Inlet,Outlet,Exhausting G1/8" |
Inlet,Outlet,Exhausting G1/4" |
||||||||
|
Model no(27mm) |
4A310-08 |
4A320-08 |
4A330C-08 |
4A330E-08 |
4A330P-08 |
4A310-10 |
4A320-10 |
4A330C-10 |
4A330E-10 |
4A330P-10 |
|
Position And Way Numbers |
Two Position-Five Way |
Three Position-Five Way |
Two Position-Five Way |
Three Position-Five Way |
||||||
|
Effective SectionVl VreV |
25mm²(CV=1.4) |
18mm²(CV=1.00) |
30mm²(CV=1.68) |
18mm²(CV=1.00) |
||||||
|
Port Size |
Inlet,Outlet,Exhausting G1/4" |
Inlet,Outlet G3/8 Exhuasting Port G1/4 |
||||||||
|
Model no(34mm) |
4A410-15 |
4A420-15 |
4A430C-15 |
4A430E-15 |
4A430P-15 |
3A410-15 |
3A420-15 |
|
Position And Way Numbers |
Two Position-Five Way |
Three Position-Five Way |
Two Position-Five Way |
||||
|
Effective Sectional Area |
50mm²(CV=2.79) |
30mm²(CV=1.68) |
50mm²(CV=2.79) |
||||
|
Port Size |
Inlet,Outlet,Exhausting G1/2" |
||||||
|
Working Medium |
Compressed 40 Micron Filtered Air |
||||||
|
Motion Pattern |
Air Operated |
||||||
|
Working Pressure |
0.15~0.9MPa |
||||||
|
Max.Pressure Resistance |
1.2MPa |
||||||
|
Operating Temperature |
5~50℃ |
||||||
|
Highest motion Frequency |
5 cycle/Sec |
||||||
4A110-06
3A110-06
4A210-08
3A210-08
4A310-10
3A210-10
4A410-15
Pneumatic valve,Air control valve,Air Operated valve,solenoid valve
