Series:Tripod Turnstile

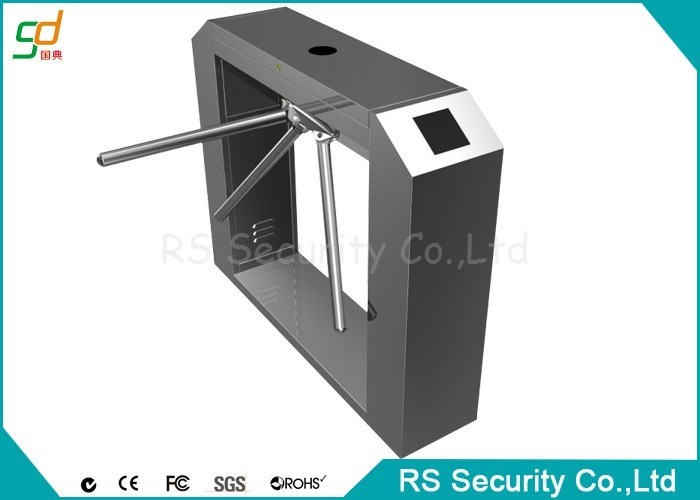

Product Name:RFID Tripod Turnstile
Model:RS 918S
Material:304 or 316 Stainless Steel
Protection grade: IP54
RFID Tripod Turnstile service: OEM/ODM
RFID Tripod Turnstile direction: Bi-direction
RFID Tripod Turnstile Colors: Bright silver grey and black, or custom
RFID Tripod Turnstile RS 918 is integrated with mechanism, electric and micro-controller and various kinds of identification technologies, compatible with IC, ID, barcode, fingerprint reader and so on to provide intelligent control and management to flow control. Durable, anti-rusty. Provide orderly passage to people, anti-illegal entry or exit, smooth operation, low noise. Arm drops off in condition of emergencies.
RFID Tripod Turnstile RS 918 is widely used in bus station, port, subway, factory, mansion, residential area, hotel, and companies and so on any place that requires a smart flow control.
|
No.
|
Parameter
|
Value
|
|
1 |
Material |
304 stainless steel |
|
2 |
Size |
1200x280x980mm |
|
3 |
Net weight |
50kg/unit |
|
4 |
Motor |
24V DC brush |
|
5 |
Communication interface |
RS485 |
|
6 |
Transit speed |
30-40 people/minute |
|
7 |
Close and open time |
0.6S |
|
8 |
Clear passage width |
550mm |
|
9 |
Number of led lamp |
1pcs |
|
10 |
Input voltage |
220V AC220±10% |
|
11 |
Are length |
510mm |
|
12 |
Arm diameter |
38mm |
|
13 |
Cooler fan |
Optional |
|
14 |
Thermostat |
Optional |
|
15 |
Service life |
5000,000 times |
|
16 |
Input interface |
Relay signal, 12V level signal, |
|
17 |
Work environment |
Indoor and outdoor (shelter) |
|
18 |
Model |
RS 918 |
1.Q:Can I know the difference between automatic type and manual type?
A:First, for manual type, it doesn't have electric control device. For automatic type, it can be compatible with card, finger print,barcode etc. Second, for manual type, it is single direction.
2.Q:Do you have any MOQ limit for tripod turnstile?
A:No, we don't have MOQ limit for tripod turnstile.
3.Q:What is the lead time for tripod turnstile?
A:For 10 units, we need 5-7 working days. For 20-50 units, we need 15 working days. For 100 units, we need 25 working days.
4.Q:Can I buy the mechanim of tripod turnstile?
A:yes, if you need, we can offer you.
5.Q:Do you offer guarantee for the products?
A:Yes, we offer one year warranty for the whole unit product and the accessories.
6.Q:Is OEM,ODM available?
A:Yes, it is available.
7.Q:Does the price include card reader and access control?
A:No. If you need, we can offer you the price.
1. Unique incomplete wheel transmission is adopted to make turnstiles held or unheld in zero position more accurate and reliable.
2. Running stable, no noise and no mechanical impact
3. Self-checking-power-on function, if power on, turnstile will auto get to be held.
4. Various working means can be set in the control panel menu, namely: bi-direction card reading passing, or one direction card reading passing and another passing limits, or one direction card reading passing and another free passing, etc.
5. If power off, arm will fall automatically while power on later, arm will be automatically lift.
6. It is with RS485 connection for far control arm up and down to satisfy the special needs or fire control requirements.
7.It is with standard electrical interface to connect various kinds of readers and writers for easy integration and also computer far control and manag
1.Bi-direction passes. When reading card from a certain side, the indication light direct the opposite direction.
2.Arms auto drop when power off.
3.Arms auto rise up when power on.
4.Traffic light indicator Show Green light show this way can passed by reading card, show red show this way can not passed.
5.Wingen 26/Dry contact is compatible with smart card for access control.
6.Passenger counters ( There have interface on PCB for card reader and counter).
7.Photoelectric inspection(fixed on back side of PCB).
8.If the passenger does not pass in valid time, the passage will be locked up. And the valid passing time can be set up by operator.
