| Material: | Aluminum | Port Size: | Ø4 Quick Push-in Type |
|---|---|---|---|
| Position And Way Numbers: | Two Position-Three Way | Product Name: | Mechanical Control Valve |
| Type: | Rod Lever Roller | Working Pressure: | 0~1.0MPa |
| Interchangeable: | Metalwork | Motion Pattern: | Direct Acting |
| Series: | MVLR Series | ||
| High Light: | Pneumatic Valve,Pneumatic Mechanical Valve |
||

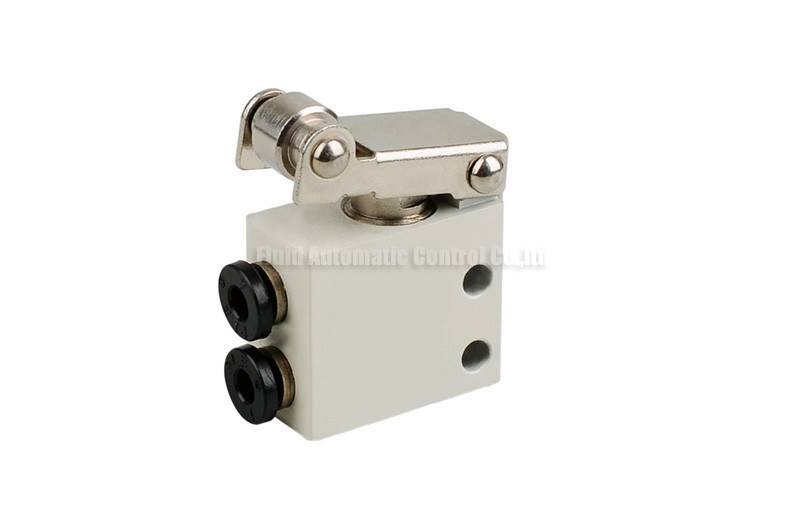

Two Position Three Way Mechanical Control Valve For Pneumatic Automation System
METALWORK type mini mechanical valve rod lever Roller type two position three way with Ø4 push-in type port connection model no.MVLR322N
Quick Detail:
* MVLR series Rod lever roller type mechanical valve metalwork interchangeable
* Aluminum Alloy Material
* Two Position Three Way
* Port connection quick push-in type size Ø4
* Miniature design,small volume,low starting pressure
* Quick and high accuracy motion
* Easy to operate,connect to tube directly,convenient in application
Applications:
MVLR series miniature mechanical valve working by outside mechanical force to control directional switch,when outside force disappear,Actuator return to original situation.Mechanical control valve have memory function
Specifications:
|
ORDERING CODE |
|
|
MVLR |
322N |
|
Type |
Function Type |
|
MVL:METALWORK VME series Mini Mechanical valve Lever Roller type |
322N: Two Position Three Way |
|
SPECIFICATION |
|
|
Model no |
MVLR322N |
|
Working Medium |
Compressed 40 Micron Filtered Air |
|
Body Material |
Aluminum Alloy |
|
Position And Way Numbers |
Two Position Three Way |
|
Port Size |
Ø4 Quick Push-in type |
|
Motion Pattern |
Direct Acting |
|
Working Pressure |
0~1.0MPa |
|
Operating Temperature |
0~60℃ |
Pneumatic Valve,Mechanical valve ,Machine control valve
