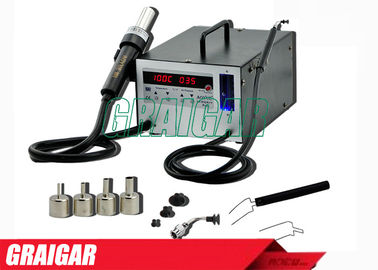

Digital Display SMD Rework Soldering Station Hot Air Gun BGA Desoldering Tool for PCB Motherboard

Name: Digital Display SMD Rework Soldering Station Hot Air Gun BGA Desoldering Tool for PCB Motherboard
Brand: Graigar
SKU: aoyue852a++
Rating: 5 (199 reviews)

Large Image : Digital Display SMD Rework Soldering Station Hot Air Gun BGA Desoldering Tool for PCB Motherboard

Product Details:

Place of Origin:	China
Brand Name:	Graigar
Certification:	CE/ROHS/SGS/ISO9001
Model Number:	aoyue852a++

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiation
Packaging Details:	Packed in carrying case firstly, and then reinforced with export carton for outer packing
Delivery Time:	2 working days after received your payment
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	1000 pieces per week

Contact Now

Detailed Product Description

Power Consumption::	500W	Temperature::	100~480C
Power Input:	110V Or 220v	Dimension::	188 X 244 X 127mm
Weight:	4.8KG	AIR CAPACITY：:	23 L/min (max)
High Light:	welding equipments , industrial welding machines

aoyue852A++ digital display SMD Rework Station Soldering Station Hot Air Gun BGA desoldering tool

Features:

Loosen the 3 screws that secure the handle.
Slide off the plastic tube.
Inside the pipe, the quartz glass and heat insulation is installed.
Peel of the protection tube covering the thermal sensor wires,unsolder the wires andfrom etach from
the base.
Loosen the clip securing the heating element to the base of the hand-piece and slide out the
heating element.
Insert new heating element and reconnect the thermal sensor wires, use heat-shrink-tubes to avoid
shorting of thermal sensor. Be careful not to rub Heating Element wire.
Reconnect the ground wire after replacing the element.its components.
Assemble the handle again.

SPECIFICATIONS
POWER INPUT:	available in 110V / 220V
WEIGHT:	4.8Kg
MAIN STATION DIMENSION:	188 x 244 x 127mm
HOT AIR GUN
POWER CONSUMPTION:	500W
TEMPERATURE RANGE:	100°C- 480°C
HEATING ELEMENT:	Metal Heating Core
PUMP TYPE:	Diaphragm Special-Purpose Lathe Pump
AIR CAPACITY:	23 L/min (max)

AOYUE Int 852A++ Package Content
1 unit	Int852A++ Main Station with Hot Air Gun and holder.
4 PCS	Air Nozzles (1124, 1130,1196,1197)
1 PC	Z003 Hot Air Gun Holder
1 PC	G001 IC Popper
1 PC	Power Cord
1 PC	Instruction Manual
