100kg Small Tilting Welding Turntable Of Automatic Type Welding Equipment

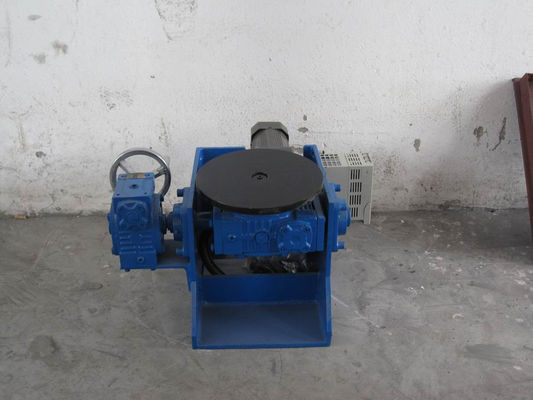

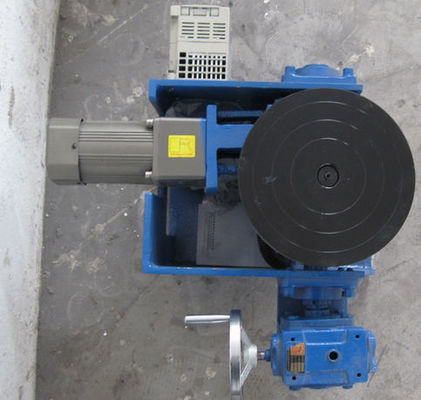

Large Image : 100kg Small Tilting Welding Turntable Of Automatic Type Welding Equipment

Product Details:

Place of Origin:	SHANGHAI
Brand Name:	Yijie
Certification:	CE
Model Number:	WP

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	discuss in letter
Packaging Details:	With bubble papaer
Delivery Time:	15--25days
Payment Terms:	TT,L/C
Supply Ability:	30sets/month

Contact Now

Detailed Product Description

High Light:

automatic welding positioner

Pipe Welding Positioner

100kg Small Tilting Welding Turntable Of Automatic Type Welding Equipment

Welding Positioner is special welding auxiliary equipment, suitable for welding deformation of rotary work to get ideal processing position and welding speed. Modification machine can use with operating machines, welding machine to compose the automatic welding center, which also can be used for manual operation of workpiece displacements. Workbench rotation adoptedinverter stepless speed regulation, and the speed precision is high. Remote control box can realize the remote operation of workbench, also can connect with operating machines, welding machine system to realize linkage operation.

Welding Positioner is mainly used for transformations of workpiece position, Modification machine is mainly used for transformations of workpiece position, so that the workpiece is in the best position to achieve the welding assembling or position the work required, in order to improve the work efficiency.

According to the working state machine displacements, our company divided it into the following several categories: fixed tilting (TP), the head and tail lifting type (HTLP). According to customers' special needs, sometimes tail frame can also make portable.

Product Application:

With the working bench going up or going down, turning and manipulating, the work piece stays in the best position for being welded or assembled.

Product Advantage:

Convenient, high efficiency
high quality
Reasonable price
good service

Specification:

Type	Max Loading Kg	Table Diameter mm	Revolve speedrpm	Tilting Angle °	Tilting Power KW	Revolving Power KW
TP05	50	300	0---3	0---90	By hand	0.12
TP1	100	400	0---3	0---90	By hand	0.2
TP3	300	600	0---2	0---90	By hand	0.37
TP6	600	800	0---1	0---120	0.55	0.75
TP12	1200	1000	0---1	0---120	1.1	1.1
TP20	2000	1200	0---0.9	0---120	1.5	1.5
TP30	3000	1400	0---0.8	0---120	2.2	1.5
TP50	5000	1600	0---0.7	0---120	3	2.2
TP100	10000	2000	0---0.6	0---120	7.5	4
TP200	20000	2500	0---0.5	0---120	11	7.5
TP300	30000	3000	0---0.4	0---120	18.5	11
TP500	50000	3000	0---0.4	0---120	22	15
Remote control box line length:10m The speed adjustment way: frequency conversion

Competitive Advantage:

Electric control system composed of electric cabinet and manual control panel making it easy to operate.
Equipped with slewing bearing which helps increase the loading capacity and makes the rotation smooth.
