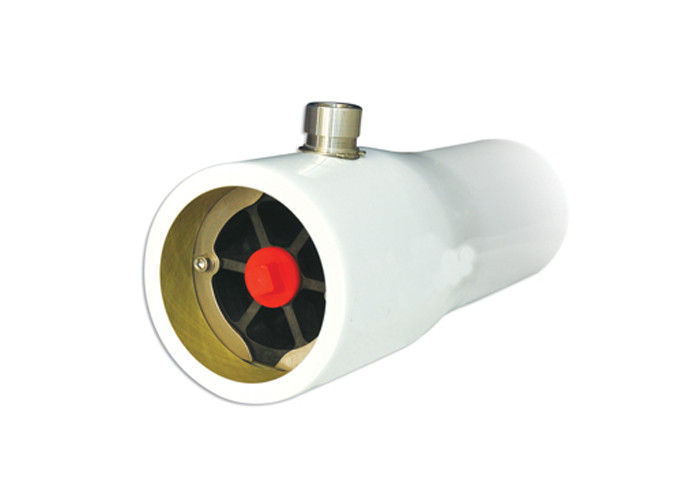

Custom 4" Side port Reverse Osmosis Pressure Vessel For Seawater Desalination

Custom 4" Side port Reverse Osmosis Pressure Vessel For Seawater Desalination
Custom 4" Side port Reverse Osmosis Pressure Vessel For Seawater Desalination

Large Image :  Custom 4" Side port Reverse Osmosis Pressure Vessel For Seawater Desalination

Product Details:
Place of Origin: China
Brand Name: Purescience
Certification: ASME/ISO9001/SGS
Model Number: F40-450S-3W
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: negotiable
Packaging Details: wooden pallet
Delivery Time: 20 working days
Payment Terms: T/T, L/C, D/P
Supply Ability: 10000 pieces per month
Detailed Product Description
Product Name: FRP RO Pressure Membrane Vessels Pressure Rating: 300psi / 450psi
Port: Side Entry Color: Blue , White
Nos Of RO Element: 1 , 2 , 3 , 4 , 5 , 6 Size: Dia. 4.0 "
Operation Temperature Range: -10°C ---49°C Test Pressure: 1.5 X Design Pressure
High Light:

RO pressure vessel

,

FRP pressure vessels

4" Side port RO membrane FRP pressure vessels for Reverse Osmosis water treatment equipment Dia. 4"

Specification

Model

Design
pressure

Membrane
element

Nos of
elements

Color
End port ( end entry )Side port ( Side Entry)
F4040E-300-(1-6)WF4040S-300-(1-6)W30040401-6

W:white;
B:blue

F4040E-450-(1-6)WF4040S-450-(1-6)W45040401-6

W:white;
B:blue

F4040E-600-(1-6)WF4040S-600-(1-6)W60040401-6

W:white;
B:blue

F4040E-1000-(1-6)WF4040S-1000-(1-6)W100040401-6

W:white;
B:blue


Description
We engineer high quality pressure vessel solutions that fit your need. We provide:

  • Pressure vessels for small to medium size plants
  • Pressure vessels for large commercial size plants
  • Custom-designed vessels with high chemical resistance
  • Installation and after-market services

Custom 4" Side port Reverse Osmosis Pressure Vessel For Seawater Desalination 0
Key Features

  • Mirror finish I.D for easy & quick loading & unloading of membranes.
  • Multi-Porting option for connecting vessels to each other.
  • High operation temperature upto 49℃ comes as a standard feature.
  • Quick lock head retention system for quick access to membranes.
  • Exteriors coated with high gloss polyurethane paint for UV resistance.
  • ASME compliant
  • Flat surface for superior and reliable sealing of side ports.
  • Threaded side ports for quick and easy onsite maintenance/serviceability.

Applications:
Water treatment, waste water treatment, seawater desalination, reverse omosis, RO system

Competitive advantage:
Rich experience in FRP pressure vessel engineering and design; we specialize in the manufacture of high quality pressure vessels. Pressure vessels designed to provide long-term, trouble-free operation, with minimal down time and improve running costs. State of the art equipment to ensure high quality pressure vessel solutions that fit our customer’s demands.

Custom 4" Side port Reverse Osmosis Pressure Vessel For Seawater Desalination 1
