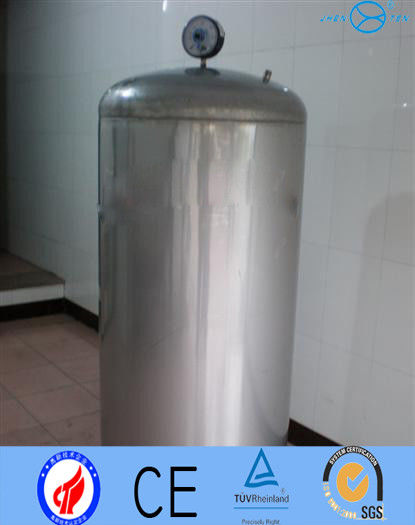

Chemical Aseptic Tank Stainless Steel Tanks And Pressure Vessels 904L

Health Chemical Aseptic Tank ss316 / ss304 Stainless Steel Pressure Vessel

This series of aseptic storage tank is sanitary container equipment. It is the used buffer and liquid storage facilities in the pharmaceutical, biotechnology, food, beverage, wine, spices, chemicals, oil and other industries.

Features

Stainless Steel tank series strictly tally with the requirements of GB150-98 Steel Pressure Vessel and JB/T4735-97 Steel Welding Normal Vessel.

1.Heat preservation material of the vessel adopt high-temperature resistant and anti-aging  polyurethane blister or per cotton.
2.Joints adopt international general ISO package chuck,inner container adopts imported stainless steel SUS 304 or SUS316 ,internal surface polishing.

All is in accordance with  GMP medicalStandards.
3.Orifice is set with level gauge (static-Pressure type,capacitance type,non-contac type ,ultra-soni

type and glass tube), air respirator,thermometer,(digital display type or dial plate type), CIP cleaning mouth , SIP sterilizing mouth, liquid entrance-exit gate and  sanitary inlet.

4.Volume Specification:100L-30000L or to be designed and manufactured  at customers'actual

request.

5.Relevant GMP Testing at data are attached in the machine.Including material report, external components certificate of quality and verification form.

Main Technical Parameters

1) Dimension: Diameter and height according to the requirements
2) Material: Stainless Steel (304 or 316L)
3) Tank shell thickness: 2mm or more (according to the design or customer required)
4) Pressure (MPa): Atmospheric pressure-Middle pressure (According to the Chinese Design standard)
5) Function: Storage or fermentation tank
6)Design temperature C-degree: -5-80
7) Tank surface: The original surface of the stainless steel plate (or polishing if required)
8) Operation plate form: We can design the plate form if required.
9) Mixing: Top side or bottom mixing.
10) General accessories(If required): Manhole, CIP, respirator, sight glass, mixing
11) Manufacture standard: Chinese Pressure Vessel Design and Making Standard
12) Guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arcwelder and auto polishing machinery and cooperating with international famous finished.
