|Material:||Ss304 Ss316L Duplex Stainless 904L||Certifications:||CE ISO9001 GMP ASME|
|Work Temperature:||0-200 Degree Celsius||Design Presure:||-1-10 Bar|
|Constructoin:||Vertical Type Horizontal Type||Surface Finish:||Mirror Matt Or 2B|

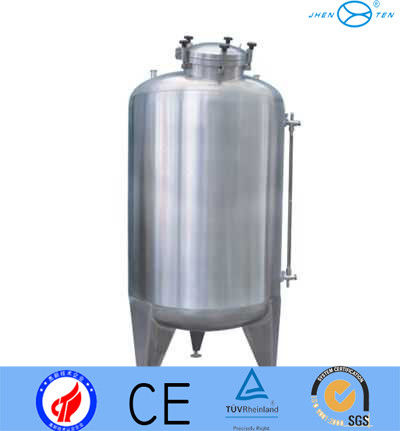

Health ss316 / ss304 Stainless Steel Pressure Vessel For Wine
This series of aseptic storage tank is sanitary container equipment. It is the used buffer and liquid storage facilities in the pharmaceutical, biotechnology, food, beverage, wine, spices, chemicals, oil and other industries.
Stainless Steel tank series strictly tally with the requirements of GB150-98 Steel Pressure Vessel and JB/T4735-97 Steel Welding Normal Vessel.
1.Heat preservation material of the vessel adopt high-temperature resistant and anti-aging polyurethane blister or per cotton.
2.Joints adopt international general ISO package chuck,inner container adopts imported stainless steel SUS 304 or SUS316 ,internal surface polishing.
All is in accordance with GMP medicalStandards.
3.Orifice is set with level gauge (static-Pressure type,capacitance type,non-contac type ,ultra-soni
type and glass tube), air respirator,thermometer,(digital display type or dial plate type), CIP cleaning mouth , SIP sterilizing mouth, liquid entrance-exit gate and sanitary inlet.
4.Volume Specification:100L-30000L or to be designed and manufactured at customers'actual
5.Relevant GMP Testing at data are attached in the machine.Including material report, external components certificate of quality and verification form.
Main Technical Parameters
1) Dimension: Diameter and height according to the requirements
2) Material: Stainless Steel (304 or 316L)
3) Tank shell thickness: 2mm or more (according to the design or customer required)
4) Pressure (MPa): Atmospheric pressure-Middle pressure (According to the Chinese Design standard)
5) Function: Storage or fermentation tank
6)Design temperature C-degree: -5-80
7) Tank surface: The original surface of the stainless steel plate (or polishing if required)
8) Operation plate form: We can design the plate form if required.
9) Mixing: Top side or bottom mixing.
10) General accessories(If required): Manhole, CIP, respirator, sight glass, mixing
11) Manufacture standard: Chinese Pressure Vessel Design and Making Standard
12) Guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized equipment of pulse plasma arcwelder and auto polishing machinery and cooperating with international famous finished.
2) According to Material: there are SUS 304 and SUS316L
2)Sanitary Tank:No Dead Corner
4)Liquid storage pot
The body of this series of stainless steel storage tanks formed by cylindrical stainless steel, and equipped with sanitary manhole, cleaning ball, liquid level gauge.
