Heavy Duty Pipe Welding Rotator Conventional With Lock Down Screw

China Heavy Duty Pipe Welding Rotator Conventional With Lock Down Screw supplier
Heavy Duty Pipe Welding Rotator Conventional With Lock Down Screw supplier Heavy Duty Pipe Welding Rotator Conventional With Lock Down Screw supplier

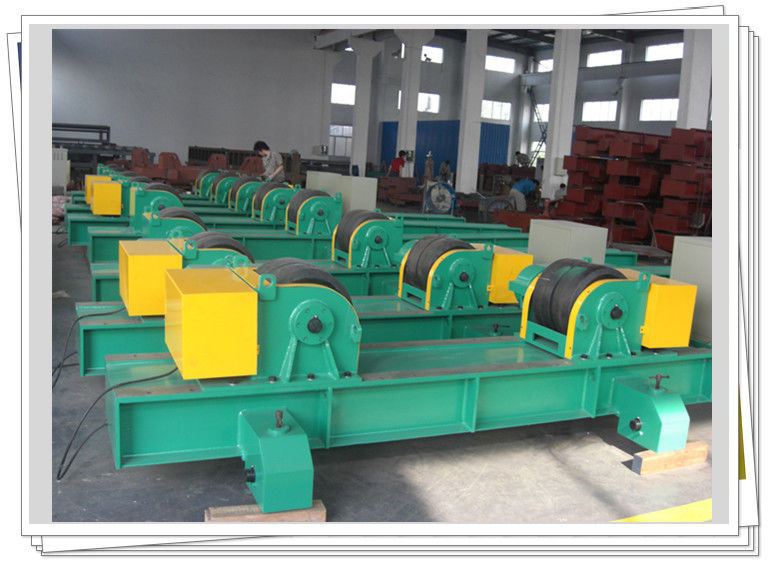

Large Image :  Heavy Duty Pipe Welding Rotator Conventional With Lock Down Screw

Product Details:

Place of Origin: China
Brand Name: Ronniewell
Certification: CE,ISO,CSA
Model Number: HGK60

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: Contact for detail
Packaging Details: Mainframe naked, spare parts packed in case
Delivery Time: 30working days
Payment Terms: 30% TT in advance, 70% TT before the shipment
Supply Ability: 45set/month
Contact Now
Detailed Product Description
Feature: Manual Trolley Roller Material: PU Coated Steel Wheel
Usage: Pipe Tank Boiler Welding Function: Rotate Job By Work Speed
Speed Control: Variable Frequency Drive Voltage: As Per Required

Heavy Duty Pipe Welding Rotator Conventional With Lock Down Screw





Brief introduction:

Roller center distance is adjustable by reserved bolt screw. Manual trolley at bottom of rotator for traveling.





Pipe welding rotator description:

  • Capcity of pipe welding rotator is various ranging from 5 tons to 1200 ton. Bigger capacity are custom built upon request.
  • One set of pipe welding rotator consists of 2 parts,say, a motorized drive (power) unit & an idler supporting unit.
  • The power unit is driven by a heavy duty AC motor.The motor is designed according to international proven specifications to ensure constant speed with outer balance load of 15%.
  • The heavy duty PU wheel are designed to 90 durable hardness with high stress rubber cushion mounts to absorb shock loads and prevent gear box damage.
  • The inverter comes with a remote control panel (operator pendant) with interlocking reversing systems operating at temperatures in excess of 60%.





Feature of pipe welding rotator:

  • These welding rotators have top-class electronic components, stepless adjustable speed of the driven part in CE marked.
  • The steel wheels of the pipe welding rotator enclose locked solid rubber tyres. From the capacity of 150 tons, it is equipped with fully steel wheels.
  • The favourable price performance ratio yields will ensure a quick payback of your investment.
  • The HGK series pipe welding rotators have a strong and durable construction with creates a very high stability.
  • We also provide tailor-made pipe welding rotators according to your special requirements.





Main technical parameters

Type

Max. load

(t)

suitable size of job (mm)

Wheel diameter and width (mm)

Linear speed m/h)

Motor power (Kw)

PU wheel

Metal wheel

HGK 5

5

Φ250-2300

Φ250×100

2×Φ240×20

6-60

2×0.37

HGK10

10

Φ320-2800

Φ300×120

2×Φ290×25

6-60

2×0.55

HGK20

20

Φ500-3500

Φ350×120

2×Φ340×30

6-60

2×1.1

HGK40

40

Φ600-4200

Φ400×120

2×Φ390×40

6-60

2×1.5

HGK60

60

Φ750-4800

Φ450×120

2×Φ440×50

6-60

2×2.2

HGK80

80

Φ850-5000

Φ500×120

2×Φ490×60

6-60

2×2.2

HGK100

100

Φ1000-5500

Φ500×120

2×Φ490×80

6-60

2×2.2

HGK160

160

Φ1100-6000

/

Φ620×220

6-60

2×3

HGK250

250

Φ1200-7000

/

Φ700×260

6-60

2×4

HGK400

400

Φ1300-7500

/

Φ800×320

6-60

2×5.5

HGK600

600

Φ1400-8500

/

Φ900×400

6-60

2×7.5





Application:

  • Pressure vessels
  • Pipe manufacturing industries
  • Wind power fabrication
  • Chemical & fuel storage tank fabrication
  • Any heavy cylindrical job





Competitive Advantage:

  • Inverter and Main electric elements are Siemens/Schneider or equal brand.
  • Motor is UK brand Invertek.
  • VFD rotary speed control, improving the reliability of operation.
  • Steel or PU roller which can ensure a long time using (at least 2 years).
  • With lubrication system.
  • Accept testing before delivery.
  • Accept special design and custom.

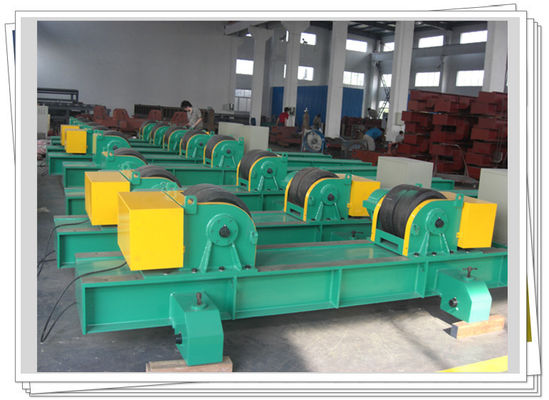

Delivery picture:

Heavy Duty Pipe Welding Rotator Conventional With Lock Down Screw





Points you may concern:
Customization - Can your machine or other products be customized?
Ronniewell: Sure. As a professional manufacturer, we have our own engineer team, who is good at design, develop & build special solution catering for your individual requirement.



Transportation-What about the transportation?
Ronniewell: Seaway is the most common transportation way for oversea trading. Depends on your location, combined transport by rail and sea is also an option. Certainly railway transportation is also acceptable if it is the most suitable approach.



After sale service - What about the after-sale service?
Ronniewell: We provide 12month guaranty period for the whole machine quality. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine. Engineer service on user premises is also available for necessary.





Name of the machine:
pipe welding rotator, pipe pipe welding rotator, pipe turning rolls, pipe welding rotators, welding roller, pipe welding rotators, pipe turning rolls, tube turning rolls, fit up rotator, self-aligned pipe welding rotator, self-aligning pipe welding rotator, self adjustable pipe welding rotator, self aligned roller stand, wheel frame, roller frame for wind tower welding, automatic adjustable welding pipe rotator, conventional pipe welding rotator, bolt adjustable pipe welding rotator, sand blasting rotator, painting rotator, 1+1 hydraulic fit up rotator, two in one fit up station
